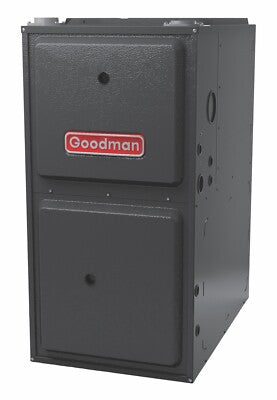

Goodman 120K BTU 96% Two Stage LP / Gas Furnace GM9C961205DN - 24.5 - Upflow
GM9C961205DN Goodman GM9C96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman\'s superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren\'t being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman\'s highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GM9C96 utilizes a 9-Speed ECM motor, which uses less power and provides smarter circulation. The value doesn\'t end at efficiency, the GM9C96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you\'re looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GM9C96.
Features:
- Advanced Heat Exchanger Design
- Secondary Heat Exchanger
- Quiet Comfort
- Venting Options
- Secure Cabinet
- Easy Integration
- Extended Warranty
Specifications:
- Type: Gas Furnace
- Product Line: GM9C96
- Product Category: Furnace
- Fuel Type: Natural Gas
- Vent Type: Direct Vent
- Modulating/Staging: Two Stage
- Blower Motor Type: ECM Multi-Speed
- Configuration: Upflow/Horizontal
- AFUE: 96%
- Heating BTU: 120000
- Maximum Air Flow: 2000 CFM
- Ultra Low NOx Emissions: No
- Low NOx Emissions: Yes
- Voltage: 115 Volts
- Phase: 1
- Frequency: 60 Hz
- Minimum Circuit Ampacity: 13.3 Amps
- Recommended Breaker Size: 20 Amps
- Flue Connection Size: 2 or 3 Inches
- Cabinet Width: 24 1/2 Inches
- Product Height: 34 1/2 Inches
- Product Width: 24 1/2 Inches
- Product Depth: 28 3/4 Inches
- Product Weight: 154 Pounds
- Product Dimensions: Height: 34 1/2 Inches, Width: 24 1/2 Inches, Depth: 28 3/4 Inches
- Shipping Weight: 154 Pounds
