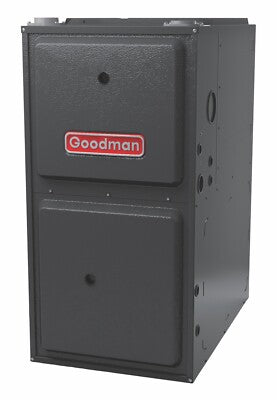

Goodman 80K BTU 96% Two Stage LP / Gas Furnace GM9C960803BN -17.5- Upflow
GM9C960803BN Goodman GM9C96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman\'s superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren\'t being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman\'s highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GM9C96 utilizes a 9-Speed ECM motor, which uses less power and provides smarter circulation. The value doesn\'t end at efficiency, the GM9C96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you\'re looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GM9C96.
Advanced Heat Exchanger Design
The GM9C96 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger\'s dependability and longevity.
Secondary Heat Exchanger
This furnace produces additional heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
Quiet Comfort
The blower, motor, and gas valve of the GM9C96 were selected for their incredibly low sound levels. Additionally, this unit\'s fan speed options make it easy to maintain virtually silent circulation.
Venting Options
The GM9C96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
Secure Cabinet
All GM9C96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.
Easy Integration
The GM9C96 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
Product Specifications
Type: Gas Furnace
Product Line: GM9C96
Product Category: Furnace
Fuel Type: Natural Gas
Vent Type: Direct Vent
Modulating/Staging: Two Stage
Blower Motor Type: ECM Multi-Speed
Configuration: Upflow/Horizontal
Gas Conversion Kit: Available
DOE Regional Compliance: Nationwide (Except CA)Performance
AFUE: 96%, Heating BTU: 80000, High Fire Input: 80000 BTU
High Fire Output: 76800 BTU
Low Fire Input: 56000 BTU
Low Fire Output: 53760 BTU
Maximum Air Flow: 1200 CFM
Ultra Low NOx Emissions: No
Low NOx Emissions: YesElectrical Data
Voltage: 115 Volts, Phase: 1, Frequency: 60 Hz
Minimum Circuit Ampacity: 8 Amps, Recommended Breaker Size: 15 AmpsDimensions
Flue Connection Size: 2 or 3 Inches
Cabinet Width: 17 1/2 Inches
Product Height: 34 1/2 Inches
Product Width: 17 1/2 Inches
Product Depth: 28 3/4 Inches
Product Weight: 118 Pounds
Shipping Weight: 118 Pounds
