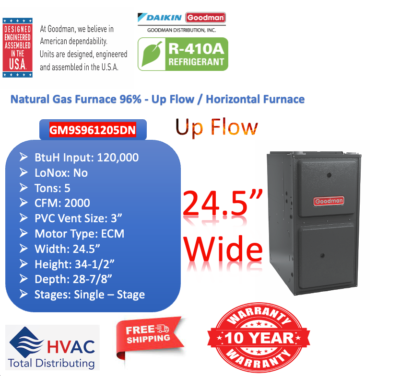

Goodman Furnace- GM9S961205DN - Upflow 96% AFUE 120k BTU Goodman Furnace- GM9S961205DN - Upflow 96% AFUE 120k BTU
Goodman\'s GM9S96 furnaces are distinguished by their exceptional craftsmanship and cost-effective performance. These multi-speed furnaces are equipped with a pair of steel heat exchangers, converting an impressive 96% of energy into comfort, marking Goodman\'s highest achievement for a single-stage furnace. In place of the standard multi-speed blower motor, the GM9S96 employs an ECM motor, not only conserving power but also facilitating intelligent air circulation. But the value doesn\'t end at efficiency. The GM9S96 offers a variety of connection options to expedite installation and features a self-diagnosing control board for streamlined maintenance. If you\'re in search of a solution to reduce energy costs and elevate comfort without straining your budget, your quest concludes with the GM9S96.
Cutting-Edge Heat Exchanger Design
The GM9S96 furnace utilizes a dependable aluminized-steel tubular heat exchanger design. Aluminized steel optimizes heat transfer efficiency, and a wrinkle-bend technique enhances the heat exchanger\'s durability and lifespan.
Secondary Heat Exchanger
This furnace generates additional heat by directing combustion gases through a secondary heat exchanger before venting. Crafted from corrosion-resistant stainless steel, the secondary heat exchanger is sloped to prevent condensate buildup.
Whisper-Quiet Comfort
The blower, motor, and gas valve of the GM9S96 have been thoughtfully selected for their exceptionally low sound levels. Moreover, this unit\'s fan speed options ensure virtually silent air circulation, further enhancing your comfort.
Versatile Venting Options
The GM9S96 offers multiple venting options to simplify installation in various applications. It can be configured for either a two-pipe direct vent setup or a single-pipe configuration with combustion air intake.
Robust Cabinet Construction
All GM9S96 furnaces are housed within a sturdy steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil insulation to prevent heat loss, and the cabinet\'s return side is solid and airtight.
Seamless Integration
Enhancing your system with a humidifier and electronic air cleaner is a breeze with the GM9S96. Simply wire them directly to the low-voltage terminals on the control board.
Extended Warranty Coverage
When you register your product online within 60 days of installation, Goodman provides an impressive 10-year limited unit replacement and parts warranty. An unregistered product carries the standard 5-year warranty.
General Information:
- Type: Gas Furnace
- Product Line: GM9S96
- Product Category: Furnace
- Fuel Type: Natural Gas
- Vent Type: Direct Vent
- Modulating/Staging: Single Stage
- Blower Motor Type: ECM Multi-Speed
- Configuration: Upflow/Horizontal
- Gas Conversion Kit: Available
- Installation Available: Yes
Performance:
- AFUE: 96%
- Heating BTU: 120,000
- High Fire Input: 120,000 BTU
- High Fire Output: 115,320 BTU
- Maximum Air Flow: 2,000 CFM
- Ultra Low NOx Emissions: No
- Low NOx Emissions: Yes
Electrical Data:
- Voltage: 115 Volts
- Phase: 1
- Frequency: 60 Hz
- Minimum Circuit Ampacity: 16.93 Amps
- Recommended Breaker Size: 20 Amps
Dimensions:
- Flue Connection Size: 3 Inches
- Cabinet Width: 24 1/2 Inches
- Product Height: 34 1/2 Inches
- Product Width: 24 1/2 Inches
- Product Depth: 28 3/4 Inches
- Product Weight: 156 Pounds
- Shipping Weight: 156 Pounds
Certifications:
- ETL Listed: Yes
- Energy Star Listed: Yes
- AHRI Certified: Yes
- ISO Certified: Yes
- AHRI Reference Number: 207349298
Warranty Information:
- Parts Warranty: 10 Years
- Heat Exchanger Warranty: Lifetime Years
