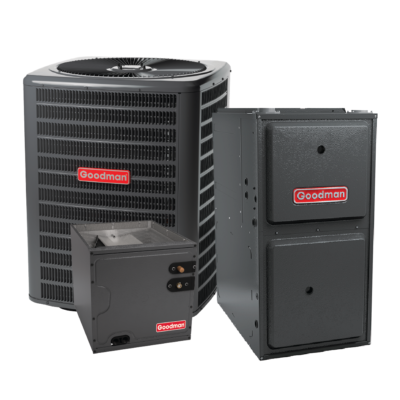

Goodman 4 Ton 13.4 SEER2 R32 AC 96% AFUE 100,000 BTU Gas Furnace -Upflow
GLXS3BN4810 Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN4810
SEER: 13.4
Unit Height: 39.5 in
Unit Width: 29 in
Unit Depth: 29 in
Unit Weight: 188 lb
Cooling Capacity Nominal: 48,000 Btu/H
Max Overcurrent Protection: 40A
Power Voltage: 208/230V
Compressor Stages: Single Stage
Compressor Type: Scroll
Refrigerant Type: R-32
Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
Evaporator Coil Model Number: CAPTA6030C3
Tonnage: 4-5
Unit Height: 30 in
Unit Width: 21 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
Product Benefits:
- High reliability and quality
- Durable and long-igniter life
- Provisions for electronic air cleaner and humidifier
Gas Furnace Model Number: GM9C961004CN
AFUE: 96%
Unit Height: 33.375 in
Unit Width: 21 in
Unit Depth: 28 in
Unit Weight: 140 lb
Cooling Capacity Nominal: 48,000 Btu/H
Max Overcurrent Protection: 25 A
Installation Configuration: Upflow/Horizontal
Power Voltage: 115V
Motor Speed Type: Nine Speed ECM
