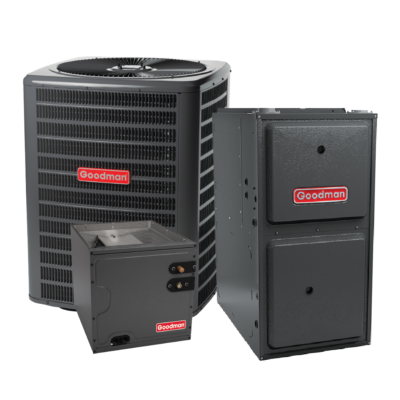

Goodman 5 Ton 13.6 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace - Upflow

GLXS3BN6010

Product Benefits:

• Energy-Efficienct Compressor
• Fully charged for 15\' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor with lug connection
• High-pressure switch
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

AC Model Number: GLXS3BN6010

• SEER: 13.4
• Unit Height: 39.5 in
• Unit Width: 35.5 in
• Unit Depth: 35.5 in
• Unit Weight: 229 lb
• Cooling Capacity Nominal: 60,000 Btu/H
• Max Overcurrent Protection: 50A
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Refrigerant Type: R-32

Evaporator Coil Model Number: CAPTA6030D3

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length

Gas Furnace Model Number: GM9C961205DNA

• AFUE: 96%
• Unit Height: 33.375 in
• Unit Width: 24.5 in
• Unit Depth: 28 in
• Unit Weight: 154 lb
• Cooling Capacity Nominal: 60,000 Btu/H
• Max Overcurrent Protection: 25 A
• Installation Configuration: Upflow/Horizontal
• Power Voltage: 115 V
• Motor Speed Type: Nine Speed ECM
