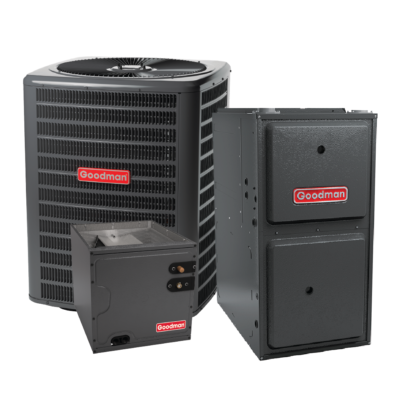

Goodman 2 Ton 14 SEER2 R32 AC 96% AFUE 80,000 BTU Gas Furnace - Upflow
GLXS3BN2410
Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number
GLXS3BN2410
SEER
13.4
Unit Dimensions:
- Height: 27.5 in
- Width: 26 in
- Depth: 26 in
- Weight: 114 lb
Cooling Capacity Nominal
24,000 Btu/H
Max Overcurrent Protection
15A
Power Voltage
208/230 V
Compressor Stages
Single Stage
Compressor Type
Rotary
Refrigerant Type
R-32
CAPTA2422B3
Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
Evaporator Coil Model Number
CAPTA2422B3
Tonnage
2
Unit Dimensions:
- Height: 22 in
- Width: 17.5 in
- Depth: 21 in
Cased/Uncased
Cased
Coil Application
Upflow/Downflow
Refrigerant Type
R-32
GM9C960803BN
Product Benefits:
- High reliability and quality
- Durable and long-igniter life
- Provisions for electronic air cleaner and humidifier
Gas Furnace Model Number
GM9C960803BN
AFUE
96%
Unit Dimensions:
- Height: 33.375 in
- Width: 17.5 in
- Depth: 28 in
- Weight: 118 lb
Cooling Capacity Nominal
36,000 Btu/H
Max Overcurrent Protection
15 A
Installation Configuration
Upflow/Horizontal
Power Voltage
115 V
Motor Speed Type
Nine Speed ECM
