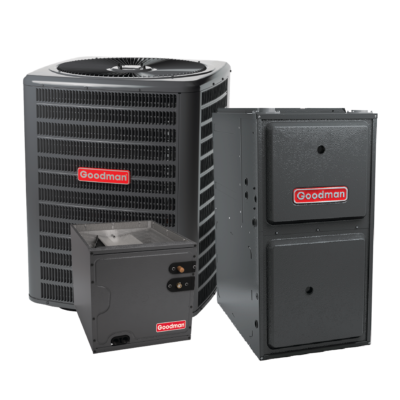

Goodman 2.5 Ton 13.4 SEER2 R32 AC 96% AFUE 80,000 BTU Gas Furnace - Upflow

GLXS3BN3010
Product Benefits:
  • Energy-Efficient Compressor
  • Fully charged for 15\' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features:
  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
AC Model Number:
  • GLXS3BN3010
SEER:
  • 13.4
Unit Height: 32.5 in
Unit Width: 26 in
Unit Depth: 26 in
Unit Weight: 134 lb
Cooling Capacity Nominal: 30,000 Btu/H
Max Overcurrent Protection: 25A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
CAPTA3022B3
Product Benefits:
  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications Vertical application
  • 21 depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
Coil Model Number:
  • CAPTA3022B3
Tonnage: 2.5
Unit Height: 22 in
Unit Width: 17.5 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
GM9C960803BN
Product Benefits:
  • High reliability and quality
  • Durable and long-igniter life
  • Provisions for electronic air cleaner and humidifier
  • Energy Efficient and quiet circulation
  • Self-diagnostic control board with constant memory
  • Simple installation and setup
  • Quiet and simple operation
Gas Furnace Model Number:
  • GM9C960803BN
AFUE: 96%
Unit Height: 33.375 in
Unit Width: 17.5 in
Unit Depth: 28 in
Unit Weight: 118 lb
Cooling Capacity Nominal: 36,000 Btu/H
Max Overcurrent Protection: 15 A
Installation Configuration: Upflow/Horizontal
Power Voltage: 115 V
Motor Speed Type: Nine Speed ECM
