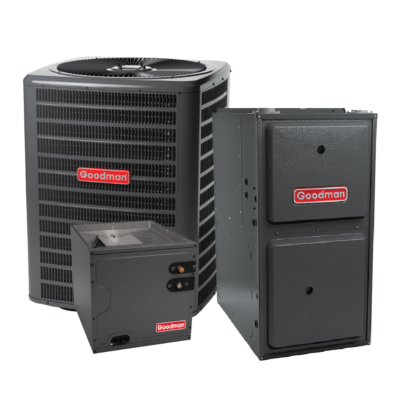

Goodman 3.5 Ton 13.8 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace - Upflow Goodman 3.5 Ton 13.8 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace - Upflow
Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories

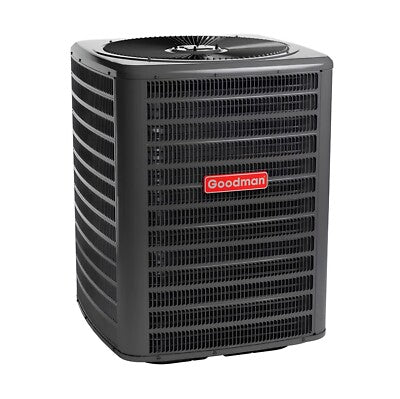

AC Model Number: GLXS3BN4210
SEER: 13.4
Unit Height: 35.75 in
Unit Width: 29 in
Unit Depth: 29 in
Unit Weight: 180 lb
Cooling Capacity Nominal: 42,000 Btu/H
Max Overcurrent Protection: 30A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Scroll
Refrigerant Type: R-32
Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
Evaporator Coil Model Number: CAPTA4230D3
Tonnage: 3.5
Unit Height: 30 in
Unit Width: 24.5 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
Product Benefits:
- High reliability and quality
- Durable and long-igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Self-diagnostic control board with constant memory
Gas Furnace Model Number: GM9C961205DN
AFUE: 96%
Unit Height: 33.375 in
Unit Width: 24.5 in
Unit Depth: 28 in
Unit Weight: 154 lb
Cooling Capacity Nominal: 60,000 Btu/H
Max Overcurrent Protection: 25 A
Installation Configuration: Upflow/Horizontal
Power Voltage: 115 V
Motor Speed Type: Nine Speed ECM
