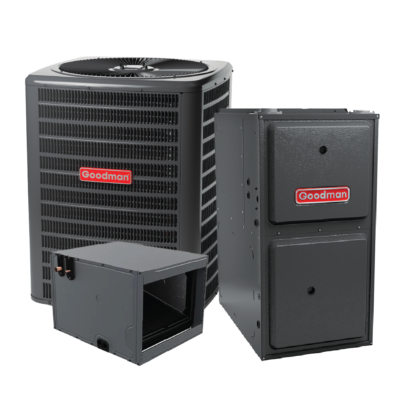

Goodman 1.5 Ton 14.5 SEER2 R32 AC 96% AFUE 60K BTU Gas Furnace - Horizontal

GLXS3BN1810

Product Benefits:

• Energy-Efficienct Compressor
• Fully charged for 15\' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor with lug connection
• High-pressure switch
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

AC Model Number: GLXS3BN1810

SEER 21

Unit Height: 27.5 in

Unit Width: 26 in

Unit Depth: 26 in

Unit Weight: 114 lb

Cooling Capacity Nominal: 18,000 Btu/H

Max Overcurrent Protection: 15A

Power Voltage: 208/230 V

Compressor Stages: Single Stage

Compressor Type: Rotary

Refrigerant Type: R-32

Product Benefits:

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications

Evaporator Coil Model Number: CHPTA2426B3

Tonnage: 2

Unit Height: 17.5 in

Unit Width: 26 in

Unit Depth: 21 in

Cased/Uncased: Cased

Coil Application: Horizontal A

Refrigerant Type: R-32

Product Benefits:

• High reliability and quality
• Faster condensate water drainage and no unit water leakage
• Durable and long igniter life
• Provisions for electronic air cleaner and humidifier
• Quiet and Economical heating
• Energy Efficient and quiet circulation

Gas Furnace Model Number: GR9T960603AN

Tax Credit

Operates on two-stage or single-stage thermostats

Easy Connection for EAC and Humidifier

Cabinet Features:

• Multi-position installation: upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
• Easy to install top venting with optional side vent
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (Qleak) less than or equal to 2%
