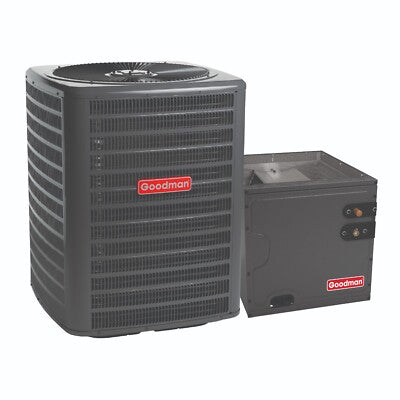

GOODMAN 4 TON 13.8 SEER2 R32 AIR CONDITIONER & 21 VERTICAL CASED COIL
The 4 Ton AC Goodman 13.8 SEER2 & 21 Vertical Cased Coil delivers dependable, energy-efficient cooling. Built with advanced R32 refrigerant technology and durable components, it ensures both performance and sustainability.
4 Ton AC Goodman - GLXS5BA4810 Features:
- Energy-Efficient Compressor with extended-life capacitors.
- Pre-Charged for 15\' Tubing for simplified setup.
- Durable Coil: Copper tube with enhanced aluminum fins (5mm diameter).
- Factory-Installed Filter Drier for optimal system protection.
- Certified for Quality: AHRI Certified and ETL Listed.
Cabinet Features of the 4 Ton Coil:
- Improved Airflow: Venturi design and removable grille-style top.
- Resilient Finish: Architectural Gray powder coat with 500-hour salt-spray resistance.
- User-Friendly Access: Single-panel control access and side/top maintenance options.
4 Ton Coil - CAPTA6030C3 Features:
- Optimized R32 Performance with an all-aluminum evaporator coil.
- Compact Design: 21 depth for attic-friendly installation.
- Durable Construction: Rust-resistant, UV-protected thermoplastic drain pan with low water retention.
- Maintenance Made Easy: Front panel access and repositionable drain pan rails.
- Certified Excellence: AHRI Certified and ETL Listed.
The 4 Ton AC Goodman 13.8 SEER2 & 21 Vertical Cased Coil is a reliable choice for efficient and long-lasting cooling performance, ideal for residential and light commercial applications.
AC Model Number
GLXS5BA4810
SEER
15.2
Tons
4
BTU
48,000
Volts
208/230
Phase
Single
Motor Type
PSC
Min. Circuit Amps
25.5
Max Fuse Size
40
Liquid Connection
3/8
Suction Fitting
1.125
Refrigerant
R-32
Width
35.5
Height
36.5
Depth
35.5
Weight
257
Evaporator Coil Model Number
CAPTA6030C3
Unit Depth
21 in
Unit Height
30 in
Unit Width
21 in
Tonnage
5 in
Cased/Uncased
Cased
