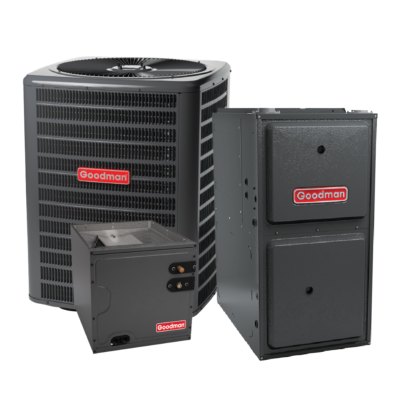

Goodman 1.5 Ton 14.5 SEER2 R32 AC 96% AFUE 60,000 BTU Gas Furnace - Upflow
GLXS3BN1810
Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
AC Model Number: GLXS3BN1810
SEER: 14
Unit Height: 27.5 in
Unit Width: 26 in
Unit Depth: 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 18,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
CAPTA2422B3
Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
Evaporator Coil Model Number: CAPTA2422B3
Tonnage: 2
Unit Height: 22 in
Unit Width: 17.5 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
GM9S960603BN
Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
Gas Furnace Model Number: GM9S960603BN
AFUE: 96%
Unit Height: 33.375 in
Unit Width: 17.5 in
Unit Depth: 28 in
Unit Weight: 111 lb
Cooling Capacity Nominal: 36,000 Btu/H
Max Overcurrent Protection: 15 A
Installation Configuration: Upflow/Horizontal
Power Voltage: 115 V
Motor Speed Type: Nine Speed ECM
