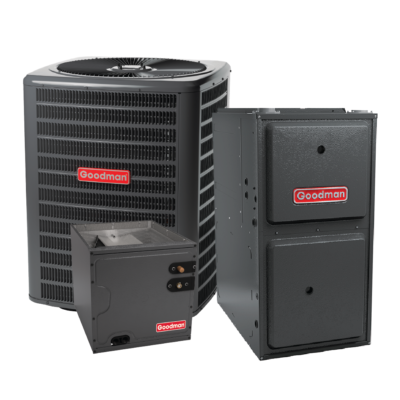

Goodman 1.5 Ton 14.5 SEER2 R32 AC 96% AFUE 80K BTU Gas Furnace - Upflow
Product Features:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil - 5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN1810
- SEER: 14.5
- Unit Height: 27.5 in
- Unit Width: 26 in
- Unit Depth: 26 in
- Unit Weight: 114 lb
- Cooling Capacity Nominal: 18,000 Btu/H
- Max Overcurrent Protection: 15A
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Rotary
- Refrigerant Type: R-32
Evaporator Coil Model Number: CAPTA2422B3
- Tonnage: 2
- Unit Height: 22 in
- Unit Width: 17.5 in
- Unit Depth: 21 in
- Cased/Uncased: Cased
- Coil Application: Upflow/Downflow
- Refrigerant Type: R-32
Gas Furnace Model Number: GR9T960803BNAFUE
- AFUE: 96%
- Unit Height x Width x Depth: 33.375 x 17.5 x 28 in
