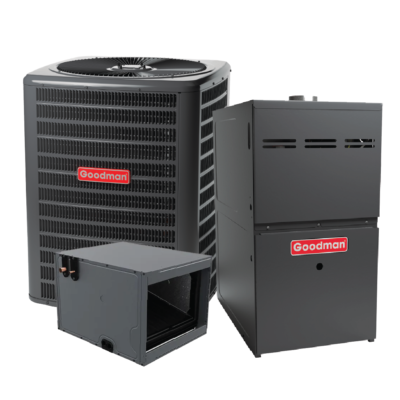

Goodman 5 Ton 13.6 SEER2 R32 AC 80% AFUE 120K BTU Gas Furnace - Upflow
GLXS3BN6010Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN6010
SEER: 13.4
Unit Height: 39.5 in
Unit Width: 35.5 in
Unit Depth: 35.5 in
Unit Weight: 229 lb
Cooling Capacity Nominal: 60,000 Btu/H
Max Overcurrent Protection: 50A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Scroll
Refrigerant Type: R-32
CAPTA6030D3Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
Evaporator Coil Model Number: CAPTA6030D3
Tonnage: 4-5
Unit Height: 30 in
Unit Width: 24.5 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
GM9S801205DNProduct Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Quiet and Economical heating
Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
Gas Furnace Model Number: GM9S801205DN
AFUE: 80%
Unit Height: 33.375 in
Unit Width: 24.5 in
