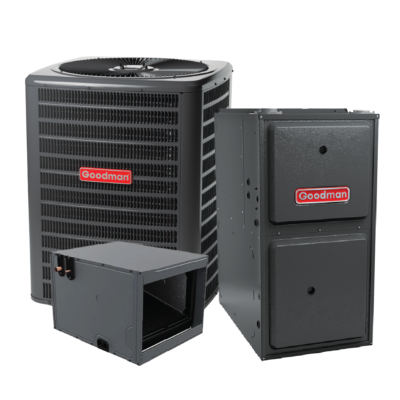

Goodman 1.5 Ton 14 SEER2 R32 AC 96% AFUE 40 K BTU Gas Furnace - Horizontal

Product Description:

• Energy-Efficient Compressor
• Fully charged for 15\' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor with lug connection
• High-pressure switch
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

AC Model Number: GLXS3BN1810

SEER: 13.4

Unit Height: 27.5 in

Unit Width: 26 in

Unit Depth: 26 in

Unit Weight: 114 lb

Cooling Capacity Nominal: 18,000 Btu/H

Max Overcurrent Protection: 15A

Power Voltage: 208/230 V

Compressor Stages: Single Stage

Compressor Type: Rotary

Refrigerant Type: R-32

Evaporator Coil:

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• Factory-installed thermal expansion valves for cooling and heat pump applications

Evaporator Coil Model Number: CHPTA1822A3

Tonnage: 1.5

Unit Height x Width x Depth: 14 x 22 x 21 in

Cased/Uncased: Cased

Coil Application: Horizontal A

Refrigerant Type: R-32

Gas Furnace:

• High reliability and quality
• Faster condensate water drainage and no unit water leakage
• Durable and long igniter life
• Provisions for electronic air cleaner and humidifier

Gas Furnace Model Number: GR9T960403AN

AFUE: 96%
