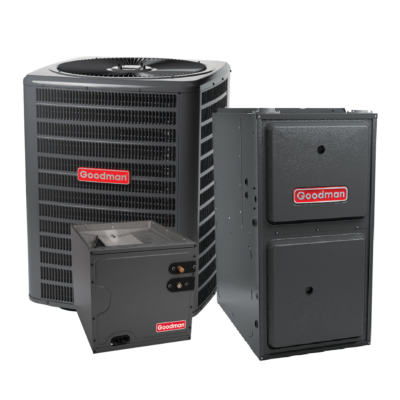

Goodman 1.5 Ton 14 SEER2 R32 AC 96% AFUE 60 K BTU Gas Furnace - Downflow
GLXS3BN1810
Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN1810
SEER: 21
Unit Height: 27.5 in
Unit Width: 26 in
Unit Depth: 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 18,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
CAPTA2422B3
Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
Evaporator Coil Model Number: CAPTA2422B3
Tonnage: 2
Unit Height x Width x Depth: 22 x 17.5 x 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
GD9T960603BN
Product Benefits:
- Higher reliability and quality
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Self-diagnostic control board with constant memory
- Simple installation and setup
Gas Furnace Model Number: GD9T960603BN
AFUE: 96%
Unit Height x Width x Depth: 33.375 x 17.5 x 28 in
Unit Weight: 115 lb
Cooling Capacity Nominal: 60,000 Btu/H
Max Overcurrent Protection: 15 A
Installation Configuration: Downflow/Horizontal
Power Voltage: 115 V
Motor Speed Type: Multi Speed ECM
