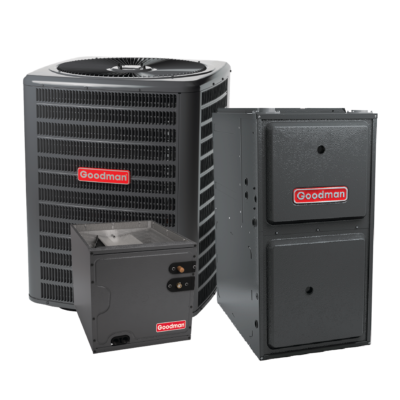

Goodman 1.5 Ton 14 SEER2 R32 AC 96% AFUE 80 K BTU Gas Furnace - Downflow
GLXS3BN1810
Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number
GLXS3BN1810
SEER 21
3.4
Unit Height 27.5 in
Unit Width 26 in
Unit Depth 26 in
Unit Weight 114 lb
Cooling Capacity Nominal 18,000 Btu/H
Max Overcurrent Protection 15A
Power Voltage 208/230V
Compressor Stages Single Stage
Compressor Type Rotary
Refrigerant Type R-32
Evaporator Coil Model Number
CAPTA2422B3
Tonnage 2
Unit Height x Width x Depth 22 x 17.5 x 21 in
Cased/Uncased Cased
Coil Application Upflow/Downflow
Refrigerant Type R-32
Gas Furnace Model Number
GD9T960803BN
AFUE 96%
Unit Height x Width x Depth 33.375 x 17.5 x 28 in
Unit Weight 118 lb
Cooling Capacity Nominal 80,000 Btu/H
Max Overcurrent Protection 15 A
Installation Configuration Upflow/Horizontal
Power Voltage 115V
Motor Speed Type Multi Speed ECM
