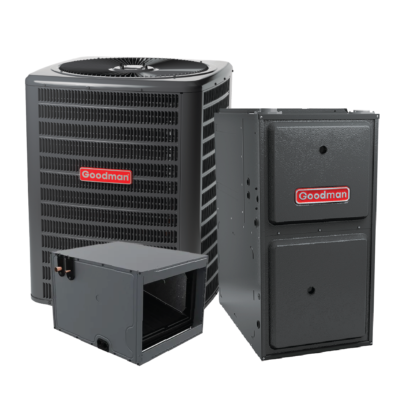

Goodman 1.5 Ton 14.5 SEER2 R32 AC 96% AFUE 60,000 BTU Gas Furnace - Horizontal

Goodman 1.5 Ton 14.5 SEER2 R32 AC 96% AFUE 60,000 BTU Gas Furnace - Horizontal

Model: SS-GLXS3BN1810 -CHPTA2426B3 - GR9S960603BN -25K-V02

$4,655.00
$4,655.00
Sale Sold out
Installation Kit
View full details

  • Goodman 1.5 Ton 14.5 SEER2 R32 AC 96% AFUE 60,000 BTU Gas Furnace - Horizontal

    GLXS3BN1810

    Product Benefits:

    • Energy-Efficient Compressor
    • Fully charged for 15\' of tubing length
    • Copper tube/enhanced aluminum fin coil-5mm diameter
    • Factory-installed filter drier
    • Sweat connection service valves with easy access to gauge ports
    • Enclosed contactor with lug connection
    • High-pressure switch
    • Capacitors with extended life
    • AHRI Certified
    • ETL Listed

    Cabinet Features:

    • Removable grille-style top design compliant with UL 60335-2-40
    • Venturi for increased velocity of airflow
    • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
    • Wire fan discharge grille
    • Steel louver coil guard
    • Top and side maintenance access
    • Single-panel access to controls with space provided for field-installed accessories

    AC Model Number: GLXS3BN1810

    • SEER 21
    • Unit Height: 27.5 in
    • Unit Width: 26 in
    • Unit Depth: 26 in
    • Unit Weight: 114 lb
    • Cooling Capacity Nominal: 18,000 Btu/H
    • Max Overcurrent Protection: 15A
    • Power Voltage: 208/230 V
    • Compressor Stages: Single Stage
    • Compressor Type: Rotary
    • Refrigerant Type: R-32

    CHPTA2426B3

    Product Benefits:

    • All-Aluminum evaporator coil
    • Optimized for use with R-32 refrigerant including circuits and manifolds
    • R-32 sensor designed for the life span of the coil
    • Factory-installed thermal expansion valves for cooling and heat pump applications
    • Standardized copper suction tube stub length
    • Check flowrator for cooling and heat pump applications

    Evaporator Coil Model Number: CHPTA2426B3

    • Tonnage: 2
    • Unit Height: 17.5 in
    • Unit Width: 26 in
    • Unit Depth: 21 in
    • Cased/Uncased: Cased
    • Coil Application: Horizontal A
    • Refrigerant Type: R-32

    GM9S960603AN

    Product Benefits:

    • High reliability and quality
    • Faster condensate water drainage and no unit water leakage
    • Durable and long igniter life
    • Provisions for electronic air cleaner and humidifier

    Gas Furnace Model Number: GM9S960603BNAFUE

    • AFUE: 96%
    • Unit Height: 33.375 in
    • Unit Width: 17.5 in
    • Unit Depth: 28 in
    • Unit Weight: 111 lb
    • Cooling Capacity Nominal: 36,000 Btu/H
    • Max Overcurrent Protection: 15 A
    • Installation Configuration: Upflow/Horizontal
    • Power Voltage: 115 V
    • Motor Speed Type: Nine Speed ECM
