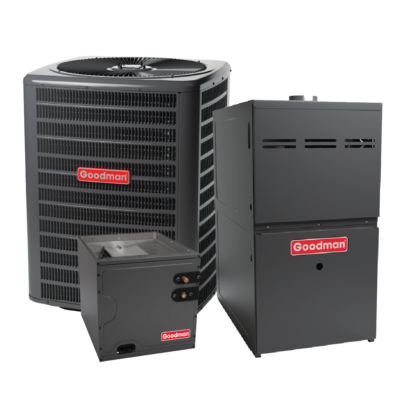

Goodman 3 Ton 14 SEER2 R32 AC 80% AFUE 100K BTU Gas Furnace- Downflow
Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN3610
SEER: 13.4
Unit Height: 32.5 in
Unit Width: 26 in
Unit Depth: 26 in
Unit Weight: 136 lb
Cooling Capacity Nominal: 36,000 Btu/H
Evaporator Coil Model Number: CAPTA3626C3
Tonnage: 3
Unit Height: 26 in
Unit Width: 21 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Gas Furnace Model Number: GM9S801005CN
AFUE: 80%
Unit Height: 33.375 in
Unit Width: 21 in
Unit Depth: 28 in
