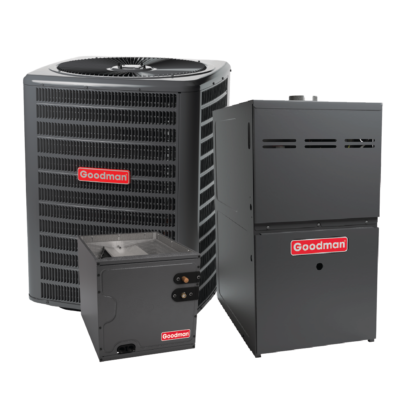

Goodman 4 Ton 14 SEER2 AC & 80% AFUE 100,000 BTU Gas Furnace System - R-32 Refrigerant
This Goodman system combines a high-performance 4 Ton air conditioner (GLXS3BN4810), a durable evaporator coil (CAPTA6030C3), and a reliable 80% AFUE gas furnace (GM9S801005CN) for efficient year-round comfort. Designed for residential and light commercial use, it offers excellent energy savings, dependable operation, and easy maintenance.
Air Conditioner Features (GLXS3BN4810)
- Energy-efficient compressor
- Fully charged for 15\' of tubing length
- Copper tube / enhanced aluminum fin coil (5mm diameter)
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Extended-life capacitors
- AHRI Certified
- ETL Listed
AC Cabinet Features
- Removable grille-style top design (UL 60335-2-40 compliant)
- Venturi design for increased airflow velocity
- Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
AC Specifications
- Model Number: GLXS3BN4810
- SEER2: 13.4
- Unit Height: 39.5 in
- Unit Width: 29 in
- Unit Depth: 29 in
- Unit Weight: 188 lb
- Cooling Capacity (Nominal): 48,000 Btu/H
- Max Overcurrent Protection: 40 A
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Refrigerant Type: R-32
Evaporator Coil Features (CAPTA6030C3)
- All-aluminum evaporator coil for durability and leak prevention
- Optimized for R-32 refrigerant (including circuits and manifolds)
- R-32 sensor designed for the coil\'s lifespan
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
- Vertical application
- 21 depth for easier attic access
- Single front access panel
- Foil-faced insulation to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust-resistant, UV-protected thermoplastic drain pan with low water retention
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails for easy coil removal/repositioning
- AHRI Certified
- ETL Listed
Evaporator Coil Specifications
- Model Number: CAPTA6030C3
- Tonnage: 4?5
- Unit Height: 30 in
- Unit Width: 21 in
- Unit Depth: 21 in
- Cased/Uncased: Cased
- Coil Application: Upflow/Downflow
- Refrigerant Type: R-32
Gas Furnace Features (GM9S801005CN)
- High reliability and build quality
- Faster condensate drainage, preventing water leakage
- Durable, long-life igniter
- Provisions for electronic air cleaner and humidifier
- Quiet, economical heating
- Energy-efficient and quiet circulation
- Lower NOx emissions
- Self-diagnostic control board with constant memory
- AHRI Certified and ETL Listed
- Eligible for tax credit
- Operates on two-stage or single-stage thermostats
- Easy EAC and humidifier connections
Gas Furnace Cabinet Features
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy top venting with optional side vent
- Left or right gas/electrical service connections
- Cabinet air leakage ? 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gauge steel cabinet with durable finish
Gas Furnace Specifications
- Model Number: GM9S801005CN
- AFUE: 80%
- Unit Height: 33.375 in
- Unit Width: (spec not provided)
