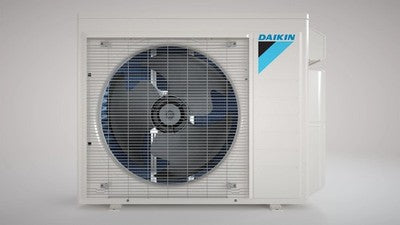

- The Daikin MXM Series 24000 BTU 20.6 SEER2 3 Zone R32 Ductless Mini Split Heat Pump System - 9K+12K+12K uses advanced inverter technology to maintain stable temperatures and save energy. With a 20.6 SEER2 rating, 12 EER2, and 9.7 HSPF2, it provides efficient cooling and heating in extreme ambient conditions, all within a quiet, easy-to-install design.Standard Features of MXM Series:Power Supply 208/230/1Precharged for up to 131 ft of liquid lineOutdoor sound pressure as low as 52 dB(A)Indoor sound pressure as low as 24 dB(A)Quiet operationAnti-corrosion treatment on heat exchangerAuto changeoverSelf-diagnostics with digital displayAuto restart after power failurePerfect for 3 zone applications, the Daikin wall-mounted design provides a sleek and space-saving installation. With a standard operating range ofHeating: 5F to 60FCooling: 14F to 115FIt delivers reliable temperature control in various climates.  Outdoor Unit3MXM24AVJU9Nominal Capacity24,000Sound Cooling52 dB(A)Sound Heating54 dB(A)Dimensions H x W x D29-1/2 x 34-1/4 x 12-5/8Weight140Line Size & Qty1/4 (2) x 3/8 (1), 1/2 (2)MOCP25Indoor UnitFTXV09AVJU9Nominal Capacity9,000Sound Cooling43/35/31/24 dB(A)Sound Heating41/35/28/25 dB(A)Dimensions H x W x D11-1/4 x 30-5/16 x 8-3/4Weight19Line Size & Qty1/4 x 3/8Indoor UnitFTXV12AVJU9Nominal Capacity12,000Sound Cooling45/37/31/24 dB(A)Sound Heating45/37/30/26 dB(A)Dimensions H x W x D11-1/4 x 30-5/16 x 8-3/4Weight19Line Size & Qty1/4 x 3/8
