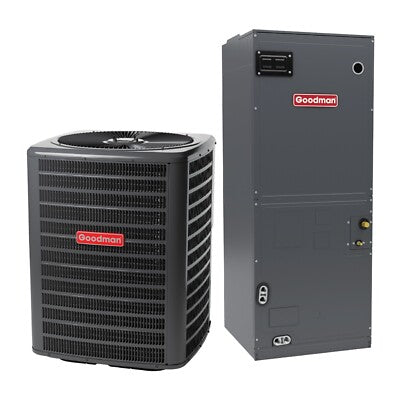

Goodman 4 Ton 13.6 SEER2 R32 Air Conditioner Split System - Multi-Positional

Goodman 4 Ton 13.6 SEER2 R32 Air Conditioner Split System - Multi-Positional

$4,316.00
$4,316.00
Sale Sold out
View full details

  • Goodman 4 Ton 13.6 SEER2 R32 Air Conditioner Split System - Multi-Positional

    Overview for Goodman GLXS3BN4810

    Goodman\'s air conditioners are all about reliable cooling at an affordable price. The GLXS3B line of air conditioners provides efficient cooling with a nominal SEER rating of 13.4 SEER2. The savings don\'t stop at energy costs though, the GLXS3B is designed for quick installation and maintenance as well. It includes advanced components that protect the coil and compressor to ensure the unit\'s longevity and your peace-of-mind. Upgrade to a Goodman air conditioner today and stay cool for years to come.

    Energy-Efficient Compressor

    This unit utilizes an energy-efficient compressor to provide refrigerant flow.

    Copper Tube/Enhanced Aluminum Fin Coil

    The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.

    Factory-Installed Filter Drier

    A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.

    Secure Cabinet

    The removable grille-style top design is UL 60335-2-40 compliant.

    Heavy-Gauge Galvanized-Steel Cabinet

    This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.

    Extended Warranty

    Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.

    AC Model Number
    GLXS3BN4810

    SEER2
    13.4

    Tons
    4

    BtuH Cooling
    48,000

    Volts
    208/230

    Phase
    Single

    Motor Type
    PSC

    Min. Circuit Amps
    25.6

    Max. Fuse Size
    40

    Liquid Connection
    3/8"

    Suction Fitting
    7/8"

    Refrigerant
    R-32

    Width
    30"

    Height
    42"

    Depth
    30.5"

    Weight (lbs.)
    188

    The Goodman AMST model Heat Pump Air Handler

    The Goodman AMST model prioritizes efficient air distribution, integrating state-of-the-art components to ensure a consistently comfortable home environment while enhancing the overall performance of your central HVAC system. It features an all-aluminum evaporator coil and pre-installed internal valves for both cooling and heat pump operations, facilitating optimal thermal expansion.

    Key Features:

    • Internal Thermostatic Expansion Valve: Comes pre-installed to simplify setup and optimize the refrigerant flow throughout the system, ensuring peak efficiency.
    • Enhanced Air Circulation: Equipped with a direct-drive, multi-speed blower motor, it adeptly adjusts air volume for both heating and cooling, promoting superior air flow and efficiency.
    • All-Aluminum Evaporator Coil: Goodman utilizes a robust all-aluminum coil design with grooved tubes and fins, significantly increasing surface area for efficient heat transfer and comfort.
    • SmartFrame? Sub-Structure: The air handler boasts a sturdy SmartFrame? construction, offering easy access to the filter rack without tools and a coil mounting track that expedites installation in any of the four compatible orientations.
    • Effective Condensate Management: Features a DecaBDE-free thermoplastic drain pan equipped with secondary drain connections to effectively manage condensation, ensuring uninterrupted system operation.
    • Durable and Quiet Cabinet: Its insulated cabinet, with a leather grain embossed finish, significantly reduces noise levels, air leakage (under 2%), and enhances durability.
    • Warranty Protection: Goodman offers a comprehensive 10-year limited parts warranty for units registered online within 60 days post-installation. Unregistered products receive a standard 5-year warranty

    Air Handler Model Number
    AMST48CU1300

    Unit Depth
    21 in

    Unit Height
    58 in

    Unit Width
    21.125 in

    Unit Weight
    153 lb

    Cooling Capacity Nominal
    48,000 Btu/H

    Max Overcurrent Protection
    60/60 A

    Power Voltage
    208/230 V

    Cased/Uncased
    Cased

    Energy Source
    Electric

    Motor Speed Type
    Nine Speed ECM
