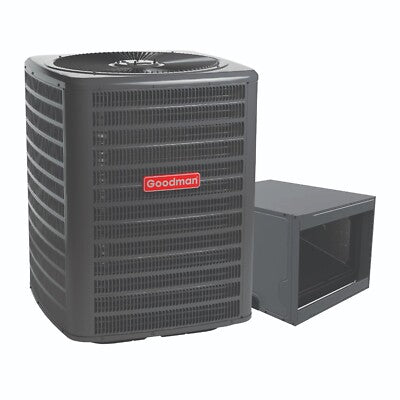

Goodman 4 Ton 13.4 SEER2 AC & 21 Horizontal Cased Coil System, R32
The Goodman 4 Ton AC 13.4 SEER2 & 21 Horizontal Cased Coil is designed for energy efficiency and reliability, perfect for cooling your space effectively. This system comes with high-performance components to ensure optimal performance.
Goodman 4 Ton AC - GLXS3BN4810 Benefits:
- Energy-Efficient Compressor
- Fully Charged for 15\' of Tubing Length
- Copper Tube/Enhanced Aluminum Fin Coil (5mm diameter)
- Factory-Installed Filter Drier
- Sweat Connection Service Valves
- Enclosed Contactor with Lug Connection & High-Pressure Switch
- Capacitors with Extended Life
- AHRI Certified & ETL Listed
Features of the 4 Ton Coil:
- Removable Grille-Style Top Design
- Venturi Design for Increased Airflow Velocity
- Architectural Gray Powder-Paint Finish
- Steel Louver Coil Guard
- Top and Side Maintenance Access
- Single-Panel Access to Controls
4 Ton Coil - CHPTA4830C3 Features:
- All-Aluminum Evaporator Coil
- Optimized for R-32 Refrigerant
- Factory-Installed Thermal Expansion Valves
- Standardized Copper Suction Tube Stub Length
- Check Flowrator for Cooling and Heat Pump Applications
- Foil-Faced Insulation
- UV-Resistant Thermoplastic Drain Pan
Overall, the Goodman 4 Ton AC 13.4 SEER2 & 21 Horizontal Cased Coil system offers high-efficiency cooling, easy installation, and long-lasting durability, making it a reliable choice for your cooling needs.
Specifications:
- AC Model Number: GLXS3BN4810
- SEER: 13.4
- Tons: 4
- BTU: 48,000
- Volts: 208/230
- Phase: Single
- Motor Type: PSC
- Min. Circuit Amps: 25.6
- Max Fuse Size: 40
- Liquid Connection: 3/8
- Suction Fitting: 1.125
- Refrigerant: R-32
- Width: 29
- Height: 39.5
- Depth: 29
- Weight: 188 lbs
Evaporator Coil Model Number: CHPTA4830C3
- Unit Depth: 21 in
- Unit Height: 21 in
- Unit Width: 30 in
- Cased/Uncased: Cased
