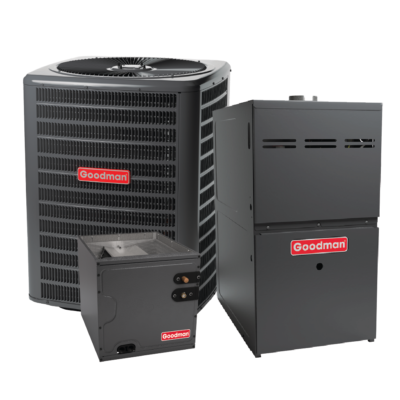

Goodman 1.5 Ton AC & Gas Furnace System

Product Benefits:

• Energy-Efficient Compressor
• Fully charged for 15\' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor with lug connection
• High-pressure switch
• Capacitors with extended life
• AHRI Certified
• ETL Listed

AC Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard

AC Model Number: GLXS3BN1810

SEER: 13.4

Tonnage: 1.5

Unit Height x Width x Depth: 27.5 x 26 x 26 in

Unit Weight: 114 lb

Cooling Capacity Nominal: 18,000 Btu/h

Max Overcurrent Protection: 15A

Power Voltage: 208/230 V

Compressor Stages: Single Stage

Compressor Type: Rotary

Refrigerant Type: R-32

Evaporator Coil Features:

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant
• Factory-installed thermal expansion valves
• Standardized copper suction tube stub length

Evaporator Coil Model Number: CAPFA2422A3

Tonnage: 1.5 - 2

Unit Height x Width x Depth: 21 x 22 x 14 in

Cased/Uncased: Cased

Coil Application: Upflow/Downflow

Refrigerant Type: R-32

Gas Furnace Features:

• High reliability and quality
• Faster condensate water drainage
• Provisions for electronic air cleaner and humidifier
• Quiet and Economical heating

Gas Furnace Model Number: GR9S800403AN

AFUE: 80%

Unit Height x Width x Depth: 33.375 x 14 x 28 in

Unit Weight: 86 lb

Cooling Capacity Nominal: 40,000 Btu/h
