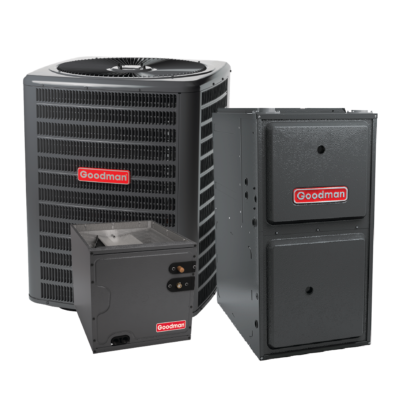

• Goodman 4 Ton 13.4 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace -Upflow
1 2

Goodman

Goodman 4 Ton 13.4 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace -Upflow

Goodman 4 Ton 13.4 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace -Upflow

Model: SS-GLXS3BN4810 - CAPTA6030D3 -GR9S961205DN - 25K-V03

$6,498.00
$6,498.00
Sale Sold out
Installation Kit
View full details

  • Goodman 4 Ton 13.4 SEER2 R32 AC 96% AFUE 120,000 BTU Gas Furnace - Upflow

    Product Benefits:

    • Energy-Efficient Compressor
    • Fully charged for 15\' of tubing length
    • Copper tube/ enhanced aluminum fin coil-5mm diameter
    • Factory-installed filter drier
    • Sweat connection service valves with easy access to gauge ports
    • Enclosed contactor with lug connection
    • High-pressure switch
    • Capacitors with extended life
    • AHRI Certified
    • ETL Listed

    Cabinet Features:

    • Removable grille-style top design compliant with UL 60335-2-40
    • Venturi for increased velocity of airflow
    • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
    • Wire fan discharge grille
    • Steel louver coil guard
    • Top and side maintenance access
    • Single-panel access to controls with space provided for field-installed accessories

    AC Model Number: GLXS3BN4810

    SEER: 13.4
    Unit Height: 39.5 in
    Unit Width: 29 in
    Unit Depth: 29 in
    Unit Weight: 188 lb
    Cooling Capacity Nominal: 48,000 Btu/H
    Max Overcurrent Protection: 40A
    Power Voltage: 208/230 V
    Compressor Stages: Single Stage
    Compressor Type: Scroll
    Refrigerant Type: R-32

    Product Benefits:

    • All-Aluminum evaporator coil
    • Optimized for use with R-32 refrigerant including circuits and manifolds
    • R-32 sensor designed for the life span of the coil
    • Factory-installed thermal expansion valves for cooling and heat pump applications
    • Standardized copper suction tube stub length
    • Check flowrator for cooling and heat pump applications
    • Vertical application
    • 21 depth for easier attic access

    Evaporator Coil Model Number: CAPTA6030D3

    Tonnage: 4-5
    Unit Height: 30 in
    Unit Width: 24.5 in
    Unit Depth: 21 in
    Cased/Uncased: Cased
    Coil Application: Upflow/Downflow
    Refrigerant Type: R-32

    Product Benefits:

    • High reliability and quality
    • Durable and long-igniter life
    • Provisions for electronic air cleaner and humidifier
    • Energy Efficient and quiet circulation

    Gas Furnace Model Number: GM9S961205DNA

    AFUE: 96%
    Unit Height: 33.375 in
    Unit Width: 24.5 in
    Unit Depth: 28 in
    Unit Weight: 154 lb
    Cooling Capacity Nominal: 60,000 Btu/H
    Max Overcurrent Protection: 25 A
    Installation Configuration: Upflow/Horizontal
    Power Voltage: 115 V
    Motor Speed Type: Multi Speed ECM
