• Goodman 1.5 Ton 13.8 SEER2 AC & 80%AFUE 40,000 BTU Gas Furnace System-Horizontal
1 2

Goodman

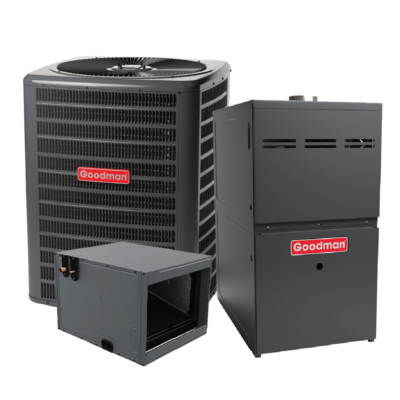

Goodman 1.5 Ton 13.8 SEER2 AC & 80%AFUE 40,000 BTU Gas Furnace System-Horizontal

Goodman 1.5 Ton 13.8 SEER2 AC & 80%AFUE 40,000 BTU Gas Furnace System-Horizontal

Model: SS-GLXS3BN1810 -CHPTA1822A3 -GR9S800403AN-25K-V02

$3,833.00
$3,833.00
Sale Sold out
Installation Kit
View full details

  • Goodman 1.5 Ton 13.8 SEER2 AC & 80%AFUE 40,000 BTU Gas Furnace System-Horizontal

    Product Benefits:

    • Energy-Efficient Compressor
    • Fully charged for 15\' of tubing length
    • Copper tube/ enhanced aluminum fin coil-5mm diameter
    • Factory-installed filter drier
    • Sweat connection service valves with easy access to gauge ports
    • Enclosed contactor with lug connection
    • High-pressure switch
    • Capacitors with extended life
    • AHRI Certified
    • ETL Listed

    Cabinet Features:

    • Removable grille-style top design compliant with UL 60335-2-40
    • Venturi for increased velocity of airflow
    • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
    • Wire fan discharge grille
    • Steel louver coil guard
    • Top and side maintenance access
    • Single-panel access to controls with space provided for field-installed accessories

    AC Model Number: GLXS3BN1810

    SEER: 13.4
    Tonnage: 1.5
    Unit Height x Width x Depth: 27.5 x 26 x 26 in
    Unit Weight: 114 lb
    Cooling Capacity Nominal: 18,000 Btu/H
    Max Overcurrent Protection: 15A
    Power Voltage: 208/230 V
    Compressor Stages: Single Stage
    Compressor Type: Rotary

    Product Benefits:

    • All-Aluminum evaporator coil
    • Optimized for use with R-32 refrigerant including circuits and manifolds
    • Factory-installed thermal expansion valves for cooling and heat pump applications
    • Standardized copper suction tube stub length
    • Check flowrator for cooling and heat pump applications
    • Vertical application
    • Foil-faced insulation covers the internal casing to reduce cabinet condensation

    Evaporator Coil Model Number: CHPTA1822A3

    Tonnage: 1.5
    Unit Height x Width x Depth: 14 x 22 x 21 in
    Cased/Uncased: Cased
    Coil Application: Horizontal
    Refrigerant Type: R-32

    Product Benefits:

    • High reliability and quality
    • Faster condensate water drainage and no unit water leakage
    • Durable and long igniter life
    • Provisions for electronic air cleaner and humidifier
    • Quiet and Economical heating
    • Energy Efficient and quiet circulation

    Gas Furnace Model Number: GR9S800403AN

    AFUE: 80%
    Unit Height x Width x Depth: 33.375 x 14 x 28 in
    Unit Weight: 86 lb
    Cooling Capacity Nominal: 40,000 Btu/H
    Max Overcurrent Protection: 15 A
