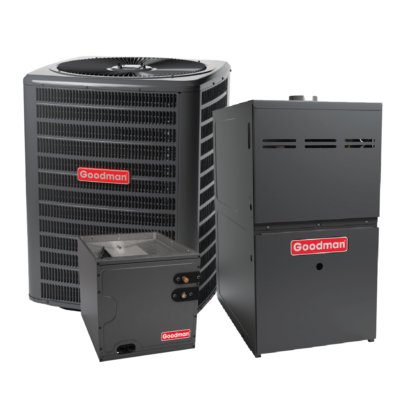

- \Goodman 1.5 Ton 14.5 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System R32 - Upflow
GLXS3BN1810
Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN1810
SEER: 14.5
Tonnage: 1.5
Unit Height x Width x Depth: 27.5 x 26 x 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 18,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
CAPTA2422B3
Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
- Vertical application
- 21 depth for easier attic access
Cabinet Features:
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pan featuring a low water-retention design
Evaporator Coil Model Number: CAPTA2422B3
Tonnage: 2
Unit Height: 22 in
Unit Width: 17.5 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
GR9S800603BN
Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Quiet and Economical heating
- Energy Efficient and quiet circulation
Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
Gas Furnace Model Number: GR9S800603B
AFUE: 80%
Unit Height x Width x Depth: 33.375 x 17.5 x 28 in
Unit Weight: 100 lb
Cooling Capacity Nominal: N/A
