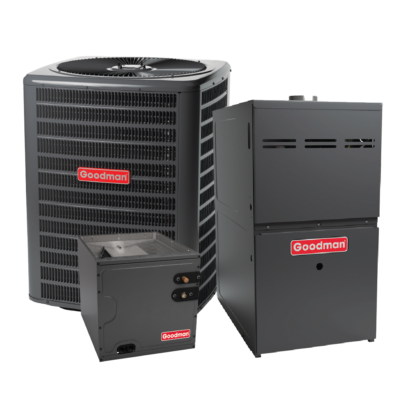

Goodman 2 Ton 14 SEER2 R32 AC 80% AFUE 40,000 BTU Gas Furnace - Upflow Goodman 2 Ton 14 SEER2 R32 AC 80% AFUE 40,000 BTU Gas Furnace - Upflow
GLXS3BN2410 Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
AC Model Number: GLXS3BN2410
SEER: 13.4
Unit Height: 27.5 in
Unit Width: 26 in
Unit Depth: 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 24,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Evaporator Coil Model Number: CAPTA2422A3
Tonnage: 2
Unit Height: 22 in
Unit Width: 14 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
GM9S800403AN Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
Gas Furnace Model Number: GM9S800403AN
AFUE: 80%
Unit Height: 33.375 in
