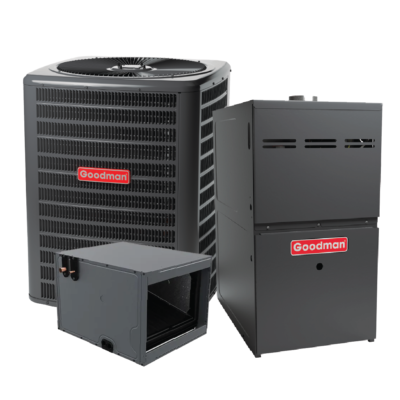

Goodman 1.5 Ton 13.8 SEER2 AC & 80% AFUE 40,000 BTU Gas Furnace System-Horizontal
Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN1810
SEER: 13.4
Tonnage: 1.5
Unit Height x Width x Depth: 27.5 x 26 x 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 18,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
Evaporator Coil
Model Number: CHPTA1822A3
Tonnage: 1.5
Unit Height x Width x Depth: 14 x 22 x 21 in
Cased/Uncased: Cased
Coil Application: Horizontal
Refrigerant Type: R-32
Furnace Model Number: GR9S800403AN
Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Quiet and Economical heating
- Energy Efficient and quiet circulation
- Lower NOx emission
- Self-diagnostic control board with constant memory
- Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
