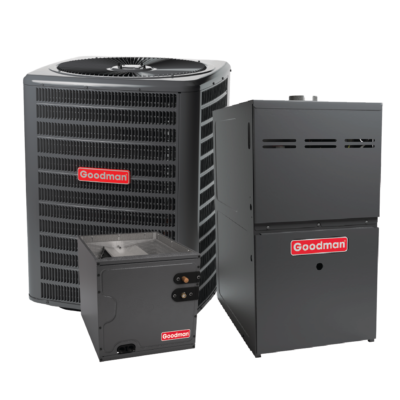

- \Goodman 1.5 Ton 13.8 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System - Upflow
GLXS3BN1810
Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15\' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
AC Model Number: GLXS3BN1810
SEER: 13.4
Tonnage: 1.5
Unit Height x Width x Depth: 27.5 x 26 x 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 18,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
Evaporator Coil Model Number: CAPFA2422A3
Tonnage: 1.5 - 2
Unit Height x Width x Depth: 21 x 22 x 14 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
Gas Furnace Model Number: GR9T800603AN
AFUE: 80%
Unit Height x Width x Depth: 33.375 x 14 x 28 in
Unit Weight: 107 lb
Cooling Capacity Nominal: -
