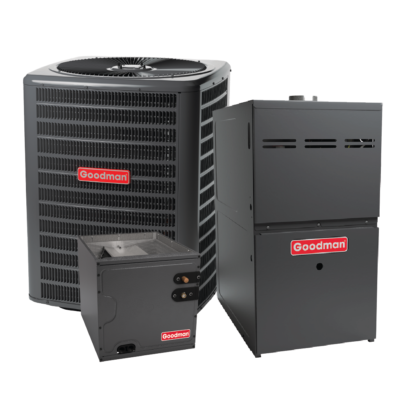

Goodman 2 Ton 14 SEER2 80% AFUE 40,000 BTU Gas Furnace & R32 AC-Upflow
GLXS3BN2410
Gas Furnace Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15\' of tubing length
- Copper tube/enhanced aluminum fin coil - 5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Gas Furnace Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
AC Model Number: GLXS3BN2410
SEER: 13.4
Unit Height: 27.5 in
Unit Width: 26 in
Unit Depth: 26 in
Unit Weight: 114 lb
Cooling Capacity Nominal: 24,000 Btu/H
Max Overcurrent Protection: 15A
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Rotary
Refrigerant Type: R-32
Evaporator Coil Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant
- Factory-installed thermal expansion valves
- Check flowrator for cooling and heat pump applications
Evaporator Coil Cabinet Features:
- Vertical application
- 21 depth for easier attic access
- Foil-faced insulation covers the internal casing
- Galvanized, leather grain-embossed finish
Evaporator Coil Model Number: CAPTA2422A3
Tonnage: 2
Unit Height: 22 in
Unit Width: 14 in
Unit Depth: 21 in
Cased/Uncased: Cased
Coil Application: Upflow/Downflow
Refrigerant Type: R-32
Gas Furnace Model Number: GM9S800403AN
Gas Furnace Product Benefits:
- High reliability and quality
- Faster condensate water drainage
- Durable and long igniter life
- Quiet and Economical heating
Gas Furnace Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
Gas Furnace Model Number: GM9S800403AN
AFUE: 80%
