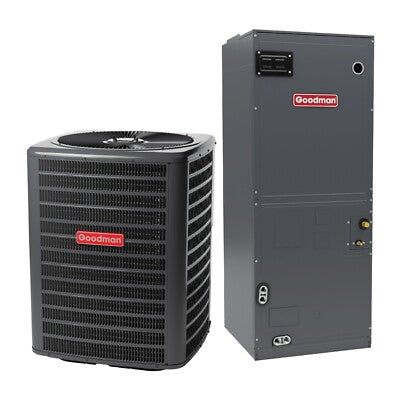

Goodman 2.5 Ton 14 SEER2 R32 Air Conditioner Split System - Multi-Positional
Overview for Goodman GLXS3BN3010
Goodman\'s air conditioners are all about reliable cooling at an affordable price. The GLXS3B line of air conditioners provides efficient cooling with a nominal SEER rating of 13.4 SEER2. The savings don\'t stop at energy costs though, the GLXS3B is designed for quick installation and maintenance as well. It includes advanced components that protect the coil and compressor to ensure the unit\'s longevity and your peace-of-mind. Upgrade to a Goodman air conditioner today and stay cool for years to come.
- Energy-Efficient Compressor - This unit utilizes an energy-efficient compressor to provide refrigerant flow.
- Copper Tube/Enhanced Aluminum Fin Coil - The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency.
- Factory-Installed Filter Drier - A filter drier is installed in the liquid line of this air conditioner.
- Secure Cabinet - The removable grille-style top design is UL 60335-2-40 compliant.
- Heavy-Gauge Galvanized-Steel Cabinet - This cabinet is built to last.
Extended Warranty - Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
AC Model Number: GLXS3BN3010
SEER2: 13.4
Tons: 2.5
BtuH Cooling: 30,000
Volts: 208/230
Phase: Single
Motor Type: PSC
Min. Circuit Amps: 14.7
Max. Fuse Size: 25
Liquid Connection: 3/8
Suction Fitting: 3/4
Refrigerant: R-32
Width: 27.5
Height: 34.5
Depth: 27.5
Weight (lbs.): 134
Goodman AMST36CU1300 Air Handler
The Goodman AMST model prioritizes efficient air distribution, integrating state-of-the-art components to ensure a consistently comfortable home environment while enhancing the overall performance of your central HVAC system. It features an all-aluminum evaporator coil and pre-installed internal valves for both cooling and heat pump operations, facilitating optimal thermal expansion.
- Internal Thermostatic Expansion Valve - Comes pre-installed to simplify setup and optimize the refrigerant flow throughout the system.
- Enhanced Air Circulation - Equipped with a direct-drive, multi-speed blower motor.
- All-Aluminum Evaporator Coil - Goodman utilizes a robust all-aluminum coil design with grooved tubes and fins.
- SmartFrame Sub-Structure - The air handler boasts a sturdy SmartFrame construction.
- Effective Condensate Management - Features a DecaBDE-free thermoplastic drain pan equipped with secondary drain connections.
Warranty Protection: Goodman offers a comprehensive 10-year limited parts warranty for units registered online within 60 days post-installation. Unregistered products receive a standard 5-year warranty
Air Handler Model Number: AMST36CU1300
Unit Depth: 21 in
Unit Height: 49 in
Unit Width: 21.125 in
Unit Weight: 153 lb
Cooling Capacity Nominal: 36,000 Btu/H
Max Overcurrent Protection: 60/60 A
Power Voltage: 208/230 V
Cased/Uncased: Cased
Energy Source: Electric
Motor Speed Type: Nine Speed ECM
