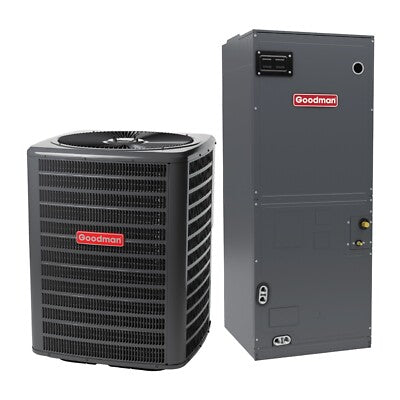

3 Ton 15.2 SEER2 Goodman R32 Heat Pump Split System

Designed for reliable and efficient temperature regulation, the Goodman 3 Ton 15.2 SEER2 Heat Pump Split System combines multiple essential parts to work seamlessly.

3 Ton Heat Pump Condenser (GLZS5BA3610):

• Compliant with the 2023 M1 Test Standards.
• UL 60335-2-40 certified, with a removable grille for added convenience.
• Made with a steel coil guard and galvanized steel cabinet, hence offering durable construction.
• Sleek gray powder-coated finish, tested for 500 hours of salt spray resistance.
• Easy maintenance with convenient top and side access.

3.5 Ton Air Handler (AMST42CU1300):

• An all-aluminum coil engineered for maximum cooling efficiency.
• A quiet 9-speed ECM motor with direct drive for seamless operation.
• Heat options available from no heat to corrosion-resistant heat (5-10 kW).
• This heat pump split system features a high-efficiency evaporator coil for enhanced performance.
• A sturdy plastic drain pan with two connection points.
• Compatible with non-ducted air return systems.
• Built with rugged galvanized steel construction and designed, thus providing easy servicing access.

Cabinet Features:

• A robust and rigid structure thanks to the SmartFrame design.
• Flexible for both horizontal and vertical configurations.
• A compact 21 depth, hence making it ideal for attic installations.
• A DecaBDE-free plastic drain pan with secondary drainage, thus ensuring safety.
• An insulated interior to reduce condensation.
• A leather-grain finish and tool-free filter access for convenience.

Choosing the Goodman 3 Ton 15.2 SEER2 Heat Pump Split System means investing in reliable and energy-efficient heating and cooling. Additionally, With Goodmans reputation for excellence, this heat pump split system delivers lasting comfort, offering peace of mind in every season. As a result, you\'ll enjoy an ideal combination of performance, durability, and energy savings with Goodman.

Heat Pump Model Number: GLZS5BA3610

Unit Height: 39.5 in
Unit Width: 35.5 in
Unit Depth: 35.5 in
Unit Weight: 222 lb
SEER: 15.2
Heating Capacity Nominal: 36000 Btu/H
Max Overcurrent Protection: 40 A
Power Phase: 1 Ph
Power Voltage: 208/230 V
Compressor Stages: Single Stage
Compressor Type: Scroll
Refrigerant Type: R-32

Air Handler Model Number: AMST42CU1300

Unit Height: 53.4375 in
Unit Width: 21.125 in
Unit Depth: 21 in
Unit Weight: 153 lb
Tonnage: 3.5
Cooling Capacity Nominal: 42000 Btu/H
Max Overcurrent Protection: 15 A
Power Phase: 1 Ph
Power Voltage: 208/230 V
Case/Uncased: Cased
Motor Speed Type: Nine Speed ECM
Refrigerant Type: R-32
