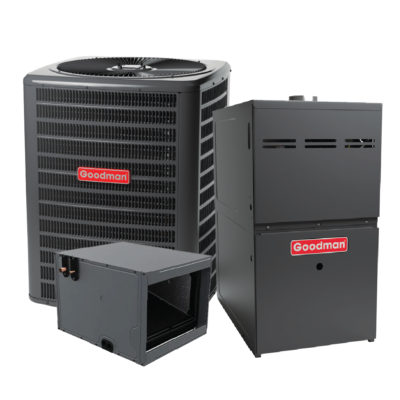

GOODMAN 2.5 TON 15.2 SEER2 AC & 80% AFUE 80K BTU GAS FURNACE SYSTEM - HORIZONTAL

GOODMAN 2.5 TON 15.2 SEER2 AC & 80% AFUE 80K BTU GAS FURNACE SYSTEM - HORIZONTAL

Model: SS-GLXS4BA3010 - CHPTA3630B3 - GR9T800603BN-V14

$4,302.00
$4,302.00
Sale Sold out
Installation Kit
View full details

  • GOODMAN 2.5 TON 15.2 SEER2 AC & 80% AFUE 80K BTU GAS FURNACE SYSTEM - HORIZONTAL

    The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (Model: GLXS4BA3010) delivers energy-efficient cooling and heating with durable construction and modern certifications for high performance and reliability.

    Key Features:

    • Energy-Efficient: High-performance compressor, pre-charged for 15\' of tubing length, and long-lasting capacitors.
    • Durability: Copper tube with enhanced 5mm aluminum fin coil and factory-installed filter drier.
    • Maintenance-Friendly: Sweat connection service valves and easy control access.
    • Certified: AHRI Certified, ETL Listed, hurricane-compliant (optional anchor brackets).

    Cabinet Features:

    • Removable grille-style top and Architectural Gray powder-paint finish for durability.
    • Easy maintenance with top and side access panels.
    • Fully insulated heat exchanger and blower sections.
    • Durable, low air leakage (Qleak ≤ 2%), supports bottom/side return air.

    Evaporator Coil - CHPTA3630B3:

    • Optimized for R-32: R-32 sensor and factory-installed thermal expansion valves for efficient cooling and heating.
    • Compact Design: Goodman 2.5 Ton 15.2 SEER2 - 21 depth for easy attic access.
    • Durable: All-aluminum coil and UV-resistant, rust-resistant drain pan.
    • Certified: AHRI Certified and ETL Listed.

    Gas Furnace - GR9T800603BN:

    • Reliable: Long-lasting igniter and efficient condensate drainage.
    • Quiet and Efficient: Energy-efficient heating with low NOx emissions.
    • Flexible Installation: Multi-position (upflow or horizontal), direct or non-direct vent.
    • Certified: Goodman 2.5 Ton 15.2 SEER2 meets AHRI and ETL safety standards, eligible for tax credits.

    Specifications:

    AC Model Number GLXS4BA3010
    SEER 14.3
    Tonnage 2.5
    Unit Height x Width x Depth 32 x 29 x 29 in
    Unit Weight 155 lb
    Cooling Capacity Nominal 30,000 Btu/H
    Max Overcurrent Protection 25A
    Power Voltage 208/230 V
    Phase Single
    Motor Type PSC
    Min Circuit Amps 14.95
    Max Fuse Size 25
    Liquid Connection 38
    Suction Fitting 34
    Refrigerant Type R-32
