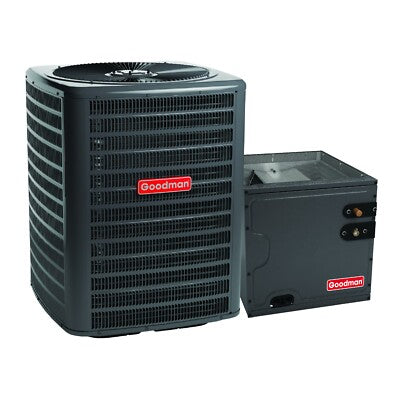

Goodman 3 Ton 13.4 SEER2 AC & 17.5 Vertical Cased Coil System, R32

The Goodman 3 Ton 13.4 SEER2 & 17.5 Vertical Cased Coil offers efficient, eco-friendly cooling for your home or business. Designed for easy installation and long-lasting performance, this system delivers reliable comfort.

3 Ton AC Goodman - GLXS3BN3610 Features:

• Energy-Efficient Compressor for optimal performance and energy savings.
• Fully Charged for 15\' of Tubing simplifying installation.
• Durable Coil Design with copper tubing and enhanced aluminum fins.
• Factory-Installed Filter Drier to protect against moisture and contaminants.
• High-Pressure Switch and Extended-Life Capacitors for durability.
• AHRI Certified and ETL Listed for safety and performance assurance.

Cabinet Features:

• 3 Ton AC Coil-Grille-Style Top Design for better airflow and UL compliance.
• Architectural Gray Finish with 500-hour salt-spray approval.
• Steel Louver Coil Guard and Easy Maintenance Access.
• Single-Panel Access for field-installed accessories.

3 Ton Coil - CAPTA3626B3 Features:

• All-Aluminum Coil for corrosion resistance and efficient heat transfer.
• R-32 Optimized refrigerant compatibility for improved performance.
• Factory-Installed Thermal Expansion Valves for cooling and heat pump applications.
• Vertical Application with 21 Depth for easier attic installation.

AC Model Number

GLXS3BN3610

SEER

13.4

Tons

3

BTU

36,000

Volts

208/230

Phase

Single

Motor Type

PSC

Min. Circuit Amps

17.5

Max Fuse Size

30

Liquid Connection

3/8

Suction Fitting

7/8

Refrigerant

R-32

Width

26

Height

32.5

Depth

26

Weight

136

Evaporator Coil Model Number

CAPTA3626B3

Unit Depth

21 in

Unit Height

26 in

Unit Width

17.5 in

Cased/Uncased

Cased
