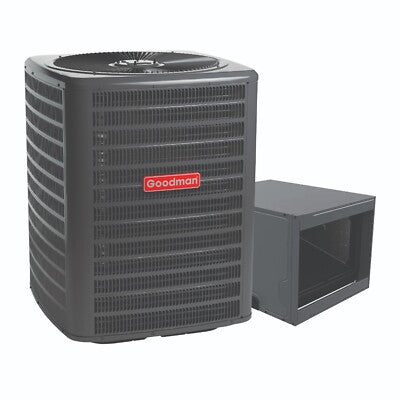

Goodman 3.5 Ton 13.4 SEER2 AC & 21 Horizontal Cased Coil System, R32
The 3.5 Ton AC Goodman 13.4 SEER2 & 21 Horizontal Cased Coil offers energy efficiency, durability, and advanced design for reliable cooling.
3.5 Ton AC Goodman - GLXS3BN4210 Features:
- Energy-efficient compressor with pre-charge for 15\' tubing.
- Enhanced copper/aluminum coil for superior heat transfer.
- Factory-installed filter drier and accessible service valves.
- High-pressure switch, enclosed contactor, and extended-life capacitors.
- AHRI Certified and ETL Listed for quality assurance.
Cabinet Highlights of the 3.5 Ton Coil:
- Removable grille-style top and venturi design for better airflow.
- Durable powder-paint finish and steel louver coil guard.
- Easy maintenance with top/side access and a single-panel design.
3.5 Ton Coil - CHPTA4230C3 Features:
- All-aluminum evaporator coil optimized for R-32 refrigerant.
- Compact 21 depth for tight spaces and foil-faced insulation to reduce condensation.
- Rust-proof, UV-resistant drain pan with efficient drainage.
Combining efficiency, sustainability, and robust construction, the 3.5 Ton AC Goodman 13.4 SEER2 & 21 Horizontal Cased Coil is ideal for residential and light commercial cooling needs.
AC Model Number
GLXS3BN4210
SEER
13.4
Tons
3.5
BTU
42,000
Volts
208/230
Phase
Single
Motor Type
PSC
Min. Circuit Amps
19.5
Max Fuse Size
30
Liquid Connection
3/8
Suction Fitting
1.125
Refrigerant
R-32
Width
29
Height
35.75
Depth
29
Weight
136
Evaporator Coil Model Number
CHPTA4230C3
Unit Depth
21 in
Unit Height
21 in
Unit Width
30 in
Cased/Uncased
Cased
