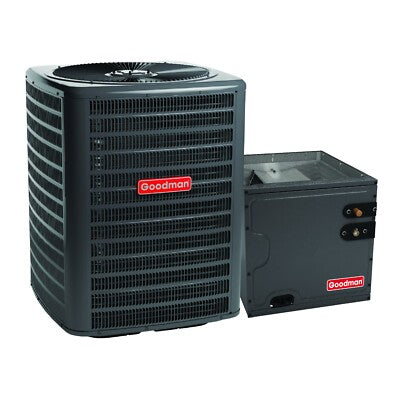

Goodman 5 Ton 13.4 SEER2 AC & 24.5 Vertical Cased Coil System, R32
The 5 Ton AC Goodman 13.4 SEER2 & 24.5 Wide Vertical Cased Coil combines efficiency, durability, and ease of installation for superior cooling performance.
5 Ton AC Goodman - GLXS3BN6010 Features:
- Energy-Efficient Compressor: Reduces energy consumption and enhances reliability.
- Pre-Charged Refrigerant: Comes charged for up to 15 feet of tubing.
- Enhanced Heat Transfer: Copper tubing with 5mm aluminum fins.
- Certified Durability: Includes factory-installed filter drier, extended-life capacitors, and ETL/AHRI certification.
Cabinet Highlights of the 5 Ton Coil Goodman:
- Grille-Style Top: UL-compliant design with easy access for maintenance.
- Improved Airflow: Venturi design for optimized cooling.
- Corrosion-Resistant Build: Architectural Gray finish with 500-hour salt-spray approval.
- User-Friendly Access: Single panel for control and accessory access.
5 Ton Coil - CAPTA6030D3 Features:
- All-Aluminum Coil: Designed for R-32 refrigerant with factory-installed thermal expansion valves.
- Compact & Versatile: 21 depth fits tight spaces; vertical configuration suits various setups.
- Rust-Resistant Drain Pan: UV-stable with low water retention and easy repositioning.
- Certified Quality: ETL and AHRI listed for performance assurance.
AC Model Number
GLXS3BN6010
SEER
13.4
Tons
5
BTU
60,000
Volts
208/230
Phase
Single
Motor Type
PSC
Min. Circuit Amps
31.1
Max Fuse Size
50
Liquid Connection
3/8
Suction Fitting
1.125
Refrigerant
R-32
Width
35.5
Height
39.5
Depth
35.5
Weight
229
Evaporator Coil Model Number
CAPTA6030D3
Unit Depth
21 in
Unit Height
30 in
Unit Width
24.5 in
Cased/Uncased
