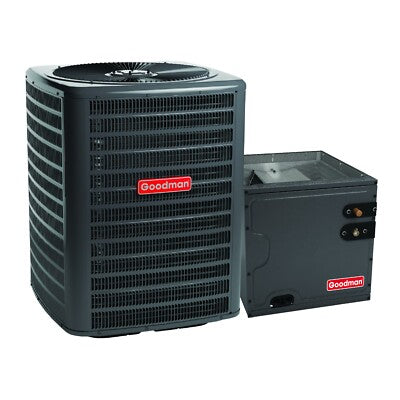

Goodman 3 Ton 13.4 SEER2 AC & 21 Vertical Cased Coil System, R32
The 3 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil provides efficient cooling while ensuring eco-friendly R-32 refrigerant compatibility.
3 Ton AC Goodman - GLXS3BN3610 Features:
- The Energy-Efficient Compressor and Fully Charged for 15\' of Tubing make for easy installation and optimal performance.
- The Copper Tube/Enhanced Aluminum Fin Coil ensures effective heat transfer.
- The Factory-Installed Filter Drier and Sweat Connection Service Valves facilitate simple maintenance.
- The High-Pressure Switch and Extended Life Capacitors increase reliability and longevity.
- It is AHRI Certified and ETL Listed, which guarantees high standards of performance and safety.
Cabinet Features:
- The Grille-Style Top Design improves airflow and complies with UL standards, while the Architectural Gray Finish offers salt-spray resistance for long-lasting durability.
- The Steel Louver Coil Guard and Top/Side Maintenance Access provide easy servicing and enhanced protection.
3 Ton Coil - CAPTA3626C3 Features:
- The All-Aluminum Coil is optimized for R-32 refrigerant, ensuring efficient cooling.
- The Factory-Installed Thermal Expansion Valves offer flexibility for both cooling and heat pump applications.
- Its 21 Depth makes installation in tight spaces more accessible.
- The Rust-Resistant, UV-Protected Drain Pan ensures durability and reduces water retention.
In conclusion, the Goodman 3 Ton 13.4 SEER2 R32 Air Conditioner & 21 Vertical Cased Coil is a reliable, energy-efficient, and eco-friendly solution for both residential and commercial cooling needs.
AC Model Number
GLXS3BN3610
SEER
13.4
Tons
3
BTU
36,000
Volts
208/230
Phase
Single
Motor Type
PSC
Min. Circuit Amps
17.5
Max Fuse Size
30
Liquid Connection
3/8
Suction Fitting
7/8
Refrigerant
R-32
Width
26
Height
32.5
Depth
26
Weight
136
Evaporator Coil Model Number
CAPTA3626C3
Unit Depth
21 in
Unit Height
26 in
Unit Width
21 in
Cased/Uncased
Cased
