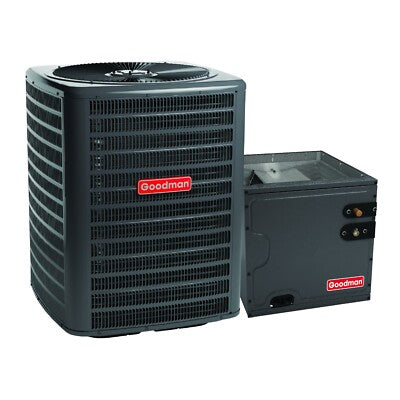

Goodman 4 Ton 13.4 SEER2 AC & 24.5 Vertical Cased Coil System, R32

The 4 Ton AC Goodman 13.4 SEER2 & 24.5 Vertical Cased Coil combines energy-efficient cooling, durable components, and innovative features designed for both performance and ease of installation.

4 Ton AC Goodman - GLXS3BN4810 Benefits:

• Energy-Efficient Compressor for cost savings.
• Fully charged for 15\' of tubing length for easy installation.
• Copper Tube/Enhanced Aluminum Fin Coil for improved heat transfer.
• Factory-Installed Filter Drier & Service Valves for easy maintenance.
• Capacitors with Extended Life and High-Pressure Switch for reliability.
• AHRI Certified & ETL Listed for quality assurance.

Cabinet Features of the 4 Ton Coil:

• Grille-Style Top Design compliant with UL 60335-2-40.
• Venturi for increased airflow velocity and Durable Gray Finish.
• Steel Louver Coil Guard and easy access for maintenance.

4 Ton Coil - CAPTA6030D3 Features:

• All-Aluminum Evaporator Coil for better durability.
• Optimized for R-32 Refrigerant and R-32 Sensor for longevity.
• Factory-Installed Thermal Expansion Valves for cooling and heat pumps.
• Vertical Application with 21 Depth for easier attic access.
• Foil-Faced Insulation to reduce condensation and enhance performance.

The 4 Ton AC Goodman 13.4 SEER2 & 24.5 Vertical Cased Coil offers high efficiency, easy installation, and durable components for reliable cooling.

AC Model Number: GLXS3BN4810

• SEER: 13.4
• Tons: 4
• BTU: 48,000
• Volts: 208/230
• Phase: Single
• Motor Type: PSC
• Min. Circuit Amps: 25.6
• Max Fuse Size: 40
• Liquid Connection: 3/8
• Suction Fitting: 1.125
• Refrigerant: R-32
• Width: 29
• Height: 39.5
• Depth: 29
• Weight: 188 lbs

Evaporator Coil Model Number: CAPTA6030D3

• Unit Depth: 21 in
• Unit Height: 30 in
• Unit Width: 24.5 in
• Cased/Uncased: Cased
