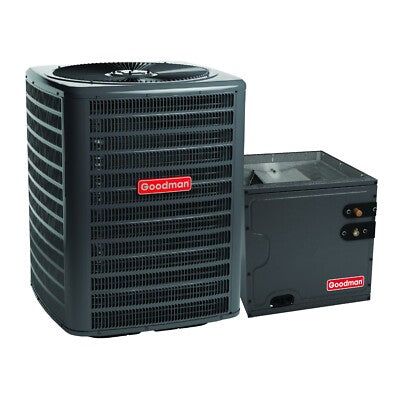

Goodman 5 Ton 13.4 SEER2 AC & 21 Vertical Cased Coil System, R32
The 5 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil delivers efficient cooling performance with durable construction and user-friendly maintenance.
5 Ton AC Goodman - GLXS3BN6010 Features:
- Energy-Efficient Compressor: Reliable operation with reduced energy use.
- Pre-Charged Convenience: Fully charged for up to 15\' of tubing for faster installation.
- Durable Coil Construction: Includes a factory-installed filter drier and extended-life capacitors for long-lasting operation.
- Factory-Installed Features: Also, Includes filter drier and extended-life capacitors.
- Certified Quality: AHRI Certified and ETL Listed for reliability and safety.
Cabinet Features of the 5 Ton Coil:
- Streamlined Design: The removable grille-style top complies with UL 60335-2-40, while providing easy access for servicing.
- Efficient Airflow: Venturi design enhances airflow velocity.
- Weather-Resistant Build: Architectural Gray powder-coated finish withstands 500-hour salt-spray tests.
- Easy Maintenance: Side and top access for routine service.
5 Ton Coil - CAPTA6030C3 Features:
- All-Aluminum Coil: Optimized for R-32 refrigerant for long-lasting efficiency.
- Compact Vertical Design: 21 depth for easier installation in tight spaces.
- Rust-Resistant Drain Pan: UV-resistant thermoplastic pan with low water retention and secondary drain connections.
- Foil-Faced Insulation: Additionally, Reduces internal cabinet condensation.
- Simplified Maintenance: Single front access panel and easy-to-remove coil rails.
- Certified for Quality: Lastly, AHRI Certified and ETL Listed for safety and performance.
In conclusion, the 5 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil are designed to provide reliable cooling and long-lasting performance. With its innovative features, robust construction, and ease of maintenance, it?s an excellent solution for efficient cooling needs. Therefore, this system is a valuable investment for those seeking energy-efficient and durable cooling.
AC Model Details:
- Model Number: GLXS3BN6010
- SEER: 13.4
- Tons: 5
- BTU: 60,000
- Volts: 208/230
- Phase: Single
- Motor Type: PSC
- Min. Circuit Amps: 31.1
- Max Fuse Size: 50
- Liquid Connection: 3/8
- Suction Fitting: 1.125
- Refrigerant: R-32
- Width: 35.5
- Height: 39.5
- Depth: 35.5
- Weight: 229 lbs
Evaporator Coil Model Details:
- Model Number: CAPTA6030C3
- Unit Depth: 21 in
- Unit Height: 30 in
- Unit Width: 21 in
- Cased/Uncased: Cased
