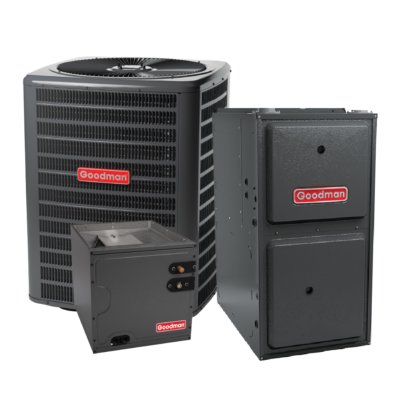

This complete Goodman HVAC system delivers exceptional comfort, high efficiency, and long-term reliability for residential and light commercial applications. Featuring a 3.5-ton R-32 air conditioner, an all-aluminum vertical cased coil, and a powerful 120,000 BTU gas furnace, this setup ensures consistent cooling and heating throughout the year.

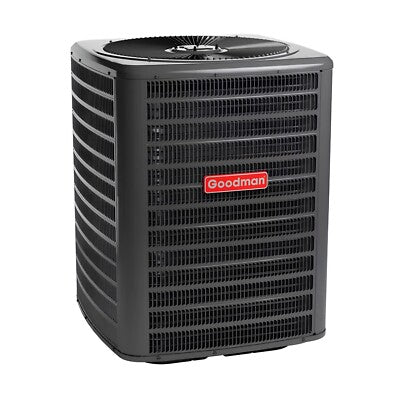

AC Unit - GLXS3BN4210 (3.5 Ton, 13.4 SEER2)
- Energy-Efficient Scroll Compressor: Reduces power usage while delivering strong cooling performance
- Pre-Charged for 15\' Tubing: Simplifies installation
- Copper Tube & Enhanced Aluminum Fins (5mm): For optimal heat transfer
- Factory-Installed Filter Drier: Increases system reliability
- Service-Friendly: Sweat connections with accessible gauge ports
- Cabinet: Removable grille-style top with UL compliance, durable gray powder finish, and steel louver coil guard
- Certifications: AHRI Certified & ETL Listed
AC Unit Specifications:
- Model: GLXS3BN4210
- Cooling Capacity: 42,000 BTU/h (3.5 Ton)
- SEER2: 13.4
- Voltage: 208/230 V
- Compressor Type: Scroll
- Stages: Single
- Refrigerant: R-32
- Dimensions (H x W x D): 35.75 x 29 x 29
- Weight: 180 lbs
- Max Overcurrent Protection: 30A
Evaporator Coil - CAPTA4230D3 (Vertical Cased, R-32)
- All-Aluminum Coil: Resistant to corrosion for long-term durability
- Optimized for R-32: Includes R-32 circuit manifolds and a long-life sensor
- Factory-Installed TXV: For precise refrigerant control in cooling and heat pump applications
- Foil-Faced Insulation: Minimizes condensation within the cabinet
- Thermoplastic Drain Pan: UV-resistant, rust-proof, and low water-retention with secondary drain connections
- Easy Access: Single front panel access for maintenance
- Certifications: AHRI Certified & ETL Listed
Evaporator Coil Specifications:
- Model: CAPTA4230D3
- Tonnage: 3.5 Ton
- Application: Upflow / Downflow
- Refrigerant: R-32
- Dimensions (H x W x D): 30 x 24.5 x 21
- Cased: Yes
Gas Furnace - GM9S961205DN (120,000 BTU, 96% AFUE)
- High-Efficiency: 96% AFUE for maximum energy savings
- Multi-Speed ECM Motor: Quiet and efficient air circulation
- Durable Hot Surface Igniter: Built for long operational life
- Quiet Operation: Fully insulated blower compartment
- Self-Diagnostics: Control board with constant memory simplifies troubleshooting
- Air Cleaner & Humidifier Ready: Easily integrates with IAQ accessories
- Flexible Venting: Supports upflow or horizontal installs
Furnace Specifications:
- Model: GM9S961205DN
- AFUE: 96%
- BTU Input: 120,000
- Cooling Capacity: 60,000 BTU/h
- Motor: Multi-Speed ECM
- Stages: Single
- Voltage: 115 V
- Max Overcurrent Protection: 25A
- Dimensions (H x W x D): 33.375 x 24.5 x 28
- Weight: 154 lbs
Experience reliable, energy-efficient heating and cooling year-round with this complete Goodman 3.5 Ton HVAC system. Ideal for homeowners looking to upgrade comfort and reduce energy bills with R-32 refrigerant and 96% AFUE efficiency.
