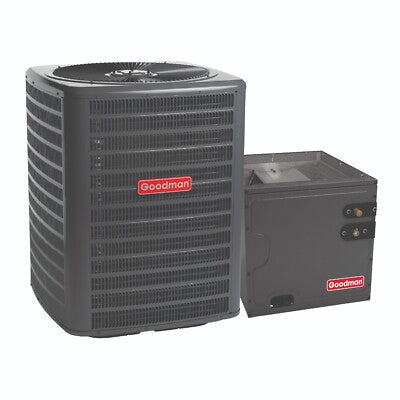

Model Numbers: GLXS5BA4210 (AC Unit) & CAPTA6030D3 (Vertical Coil)
Designed for high efficiency and long-lasting performance, this Goodman 3.5 Ton system is ideal for residential and light commercial applications.

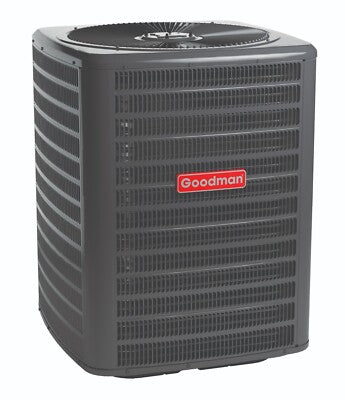

AC Unit Features (GLXS5BA4210):
- 14.3 SEER2 energy-efficient scroll compressor
- Pre-charged for up to 15 feet of tubing length
- 5mm copper tube with enhanced aluminum fin coil for improved heat transfer
- Factory-installed filter drier for system protection and longevity
- Sweat connection service valves with gauge port access
- Enclosed contactor and high-pressure switch for added safety
- Extended-life capacitors reduce maintenance needs
- AHRI Certified & ETL Listed
Coil Cabinet Features:
- Removable grille-style top design (UL 60335-2-40 compliant)
- Venturi airflow design enhances cooling performance
- Architectural gray powder-coated finish (500-hour salt-spray approved)
- Steel louver coil guard for added protection
- Top and side access for easy servicing
- Single-panel access for controls and accessories

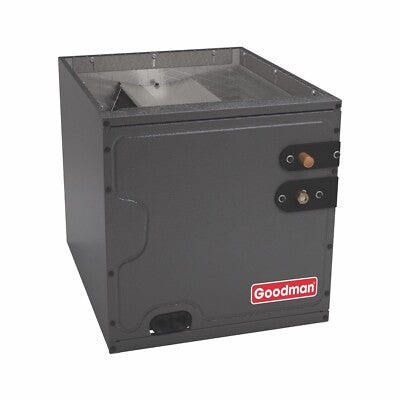

Vertical Coil Features (CAPTA6030D3):
- All-aluminum evaporator coil for corrosion resistance
- Optimized for use with R-32 refrigerant
- Factory-installed TXV for cooling and heat pump compatibility
- Standardized copper suction stub for simpler installation
- Foil-faced insulation reduces cabinet condensation
- UV-resistant thermoplastic drain pan with low water retention
- AHRI Certified & ETL Listed
Specifications:
- Cooling Capacity: 3.5 Ton / 42,000 BTU
- SEER2: 14.3
- Voltage: 208/230V, Single Phase
- Refrigerant: R-32
- AC Unit Dimensions: 35.5 W x 36.5 H x 35.5 D
- AC Unit Weight: 258 lbs
- Coil Dimensions: 24.5 W x 30 H x 21 D
- Cased Coil: Yes
This Goodman 3.5 Ton cooling system delivers efficient performance, durable construction, and straightforward maintenance ? a great choice for dependable comfort.
