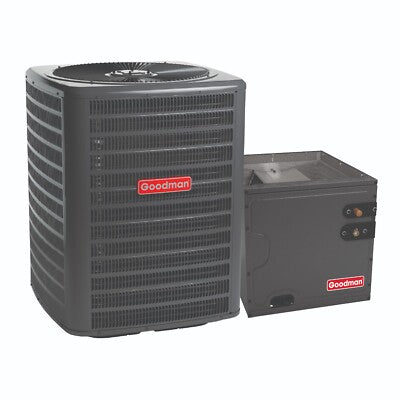

Model Numbers: GLXS4BA3010 (AC Unit) & CAPTA3026B3 (Vertical Coil)
The Goodman 2.5 Ton cooling system delivers energy-efficient and reliable performance for residential and light commercial applications. With durable construction and advanced features, it?s built for long-lasting comfort.

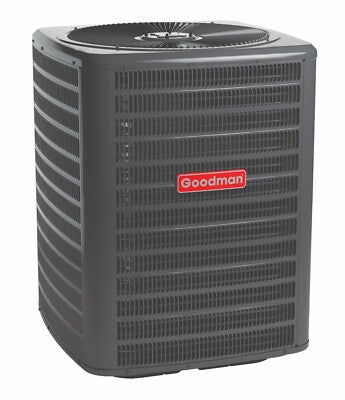

AC Unit Features (GLXS4BA3010):
- 14.3 SEER2 energy efficiency rating
- High-efficiency scroll compressor for dependable cooling
- CoreSenseâ„¢ diagnostics for added system protection
- Factory-charged for up to 15 ft of tubing
- Copper tubing with aluminum fin coil for enhanced heat transfer
- Service valves and gauge ports for easy maintenance
- Extended-life capacitors and high-pressure switch included
- AHRI Certified & ETL Listed

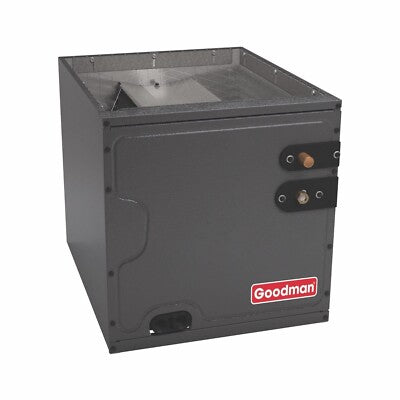

Coil Features (CAPTA3026B3):
- All-aluminum coil optimized for R-32 refrigerant
- Integrated thermal expansion valves for efficiency
- Compact 21 depth for attic and horizontal applications
- Foil-faced insulation reduces cabinet condensation
- UV-resistant thermoplastic drain pan with low water retention
- AHRI Certified & ETL Listed
Specifications:
- Cooling Capacity: 2.5 Ton / 30,000 BTU
- SEER2 Rating: 14.3
- Voltage: 208/230V, Single Phase
- Refrigerant: R-32
- Dimensions (AC Unit): 29 W x 32 H x 29 D
- Weight (AC Unit): 68 lbs
- Dimensions (Coil): 17.5 W x 26 H x 21 D
- Cased Coil: Yes
This 2.5 Ton Goodman system offers efficient cooling, long-term durability, and easy maintenance?perfect for modern HVAC installations.
