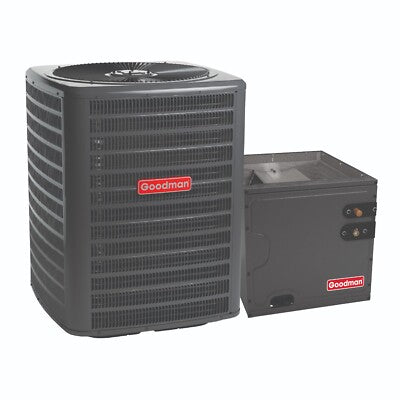

Model Numbers: GLXS5BA2410 (AC Unit) & CAPTA3026B3 (Vertical Coil)
The Goodman 2 Ton cooling system offers dependable performance and energy efficiency for residential applications. With a durable design and R-32 refrigerant compatibility, it?s built for long-term home comfort.

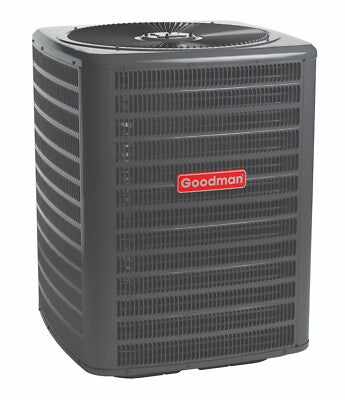

AC Unit Features (GLXS5BA2410):
- 14.3 SEER2 energy efficiency rating
- High-efficiency scroll compressor
- Pre-charged for up to 15\' of tubing for fast installation
- Copper tube with 5mm enhanced aluminum fin coil
- Factory-installed filter drier and high-pressure switch
- AHRI Certified & ETL Listed
- Powder-coated finish with 500-hour salt-spray resistance
- Venturi top design for improved airflow
- Removable top and side panels for easy maintenance

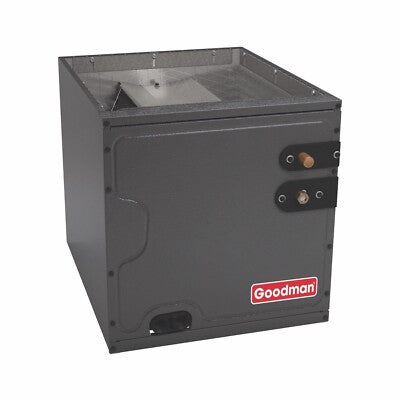

Coil Features (CAPTA3026B3):
- All-aluminum coil optimized for R-32 refrigerant
- Integrated R-32 sensor for added protection
- Compact 21 depth for tight attic installations
- Galvanized finish with UV-resistant thermoplastic drain pan
- AHRI Certified & ETL Listed
Specifications:
- Cooling Capacity: 2 Ton / 24,000 BTU
- SEER2 Rating: 14.3
- Voltage: 208/230V, Single Phase
- Motor Type: PSC
- Refrigerant: R-32
- Min. Circuit Amps: 13.8
- Max Fuse Size: 20
- Liquid Line: 3/8
- Suction Line: 3/4
- Dimensions (AC Unit): 29 W x 32 H x 29 D
- Weight (AC Unit): 151 lbs
- Dimensions (Coil): 17.5 W x 26 H x 21 D
- Cased Coil: Yes
This Goodman 2 Ton system delivers reliable cooling with a space-saving vertical coil, ideal for today?s efficient home HVAC installations.
