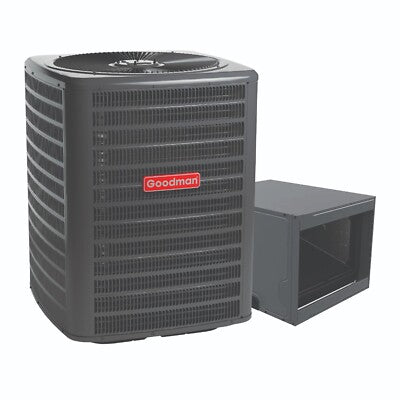

Model Numbers: GLXS5BA4810 (AC Unit) & CHPTA6030D3 (Coil)
This Goodman 4 Ton cooling system is ideal for residential and light commercial spaces.

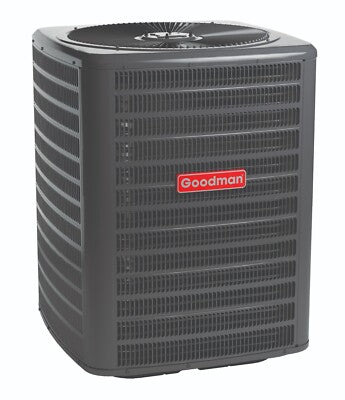

AC Unit Features (GLXS5BA4810):
- 13.8 SEER2 energy efficiency
- Factory pre-charged for up to 15\' of tubing
- Copper tube with enhanced 5mm aluminum fin coil
- AHRI Certified & ETL Listed
- Factory-installed filter drier for system protection
- Durable powder-coated cabinet (500-hour salt spray tested)
- Top and side access for easy maintenance
Coil Features (CHPTA6030D3):
- All-aluminum coil optimized for R-32 refrigerant
- Compact 21 depth ideal for tight spaces
- Rust-resistant thermoplastic drain pan
- Adjustable pan rails without structural compromise
- AHRI Certified & ETL Listed
Specifications:
- Cooling Capacity: 4 Ton / 48,000 BTU
- Voltage: 208/230V, Single Phase
- Refrigerant: R-32
- Liquid Line: 3/8
- Suction Line: 1-1/8
- Dimensions (Condenser): 35.5 W x 36.5 H x 35.5 D
- Dimensions (Coil): 30 W x 21 H x 21 D
- Weight: 257 lbs (Condenser)
This complete Goodman system provides efficient, quiet cooling performance with long-lasting durability. Ships factory-new and ready for installation.
