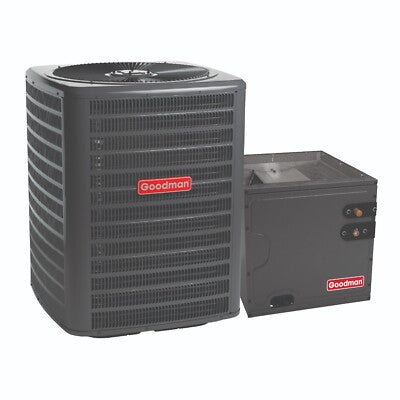

Model Numbers: GLXS5BA2410 (AC Unit) & CAPTA2422B3 (Vertical Coil)
The Goodman 2 Ton cooling system is a reliable, energy-efficient solution for residential applications. With a compact design, durable construction, and modern refrigerant compatibility, it offers long-term performance and comfort.

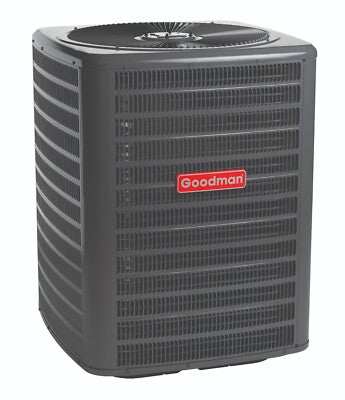

AC Unit Features (GLXS5BA2410):
- 14.3 SEER2 energy efficiency rating
- Pre-charged for up to 15\' of tubing for faster installation
- High-efficiency scroll compressor
- Copper tube with enhanced aluminum fin coil
- Factory-installed filter drier, high-pressure switch, and extended-life capacitors
- AHRI Certified & ETL Listed
- Durable galvanized steel cabinet with powder-coat finish (500-hour salt-spray tested)
- Venturi top design for optimized airflow
- Removable grille and side panels for easy servicing

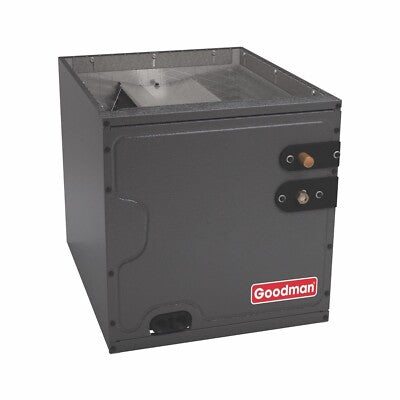

Coil Features (CAPTA2422B3):
- All-aluminum coil optimized for R-32 refrigerant
- Compact 21 depth ? suitable for attic or horizontal applications
- Rust-resistant thermoplastic drain pan with UV protection
- Single-panel front access for maintenance
- AHRI Certified & ETL Listed
Specifications:
- Cooling Capacity: 2 Ton / 24,000 BTU
- SEER2 Rating: 14.3
- Voltage: 208/230V, Single Phase
- Motor Type: PSC
- Refrigerant: R-32
- Min. Circuit Ampacity: 13.8
- Max. Fuse Size: 20
- Liquid Line: 3/8
- Suction Line: 3/4
- Dimensions (AC Unit): 29 W x 32 H x 29 D
- Weight (AC Unit): 151 lbs
- Dimensions (Coil): 17.5 W x 22 H x 21 D
- Cased Coil: Yes
This Goodman 2 Ton AC system delivers quiet, efficient cooling performance with a space-saving vertical coil design?perfect for dependable home comfort.
