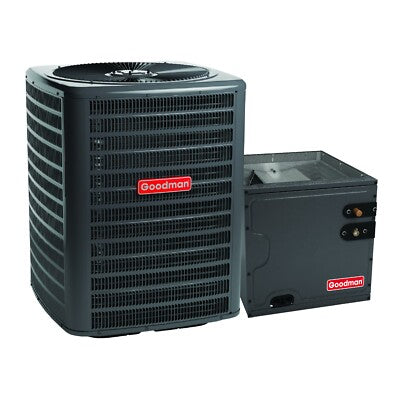

Goodman 3 Ton 13.4 SEER2 AC & 17.5 Vertical Cased Coil System, R32

The 3 Ton AC Goodman 13.4 SEER2 & 17.5 Vertical Cased Coil offers efficient, eco-friendly cooling for your home or business. Designed for easy installation and long-lasting performance, this system delivers reliable comfort.

Features:

• Energy-Efficient Compressor for optimal performance and energy savings
• Fully Charged for 15\' of Tubing simplifying installation
• Durable Coil Design with copper tubing and enhanced aluminum fins
• Factory-Installed Filter Drier to protect against moisture and contaminants
• High-Pressure Switch and Extended-Life Capacitors for durability
• AHRI Certified and ETL Listed for safety and performance assurance

Cabinet Features:

• 3 Ton AC Coil-Grille-Style Top Design for better airflow and UL compliance
• Architectural Gray Finish with 500-hour salt-spray approval
• Steel Louver Coil Guard and Easy Maintenance Access
• Single-Panel Access for field-installed accessories

3 Ton Coil Features:

• All-Aluminum Coil for corrosion resistance and efficient heat transfer
• R-32 Optimized refrigerant compatibility for improved performance
• Factory-Installed Thermal Expansion Valves for cooling and heat pump applications
• Vertical Application with 21 Depth for easier attic installation

Specifications:

AC Model Number: GLXS3BN3610
SEER: 13.4
Tons: 3
BTU: 36,000
Volts: 208/230
Phase: Single
Motor Type: PSC
Min. Circuit Amps: 17.5
Max Fuse Size: 30
Liquid Connection: 3/8
Suction Fitting: 7/8
Refrigerant: R-32
Width: 26
Height: 32.5
Depth: 26
Weight: 136 lbs

Evaporator Coil Model Number: CAPTA3626B3
Unit Depth: 21 in
Unit Height: 26 in
Unit Width: 17.5 in
Cased/Uncased: Cased
