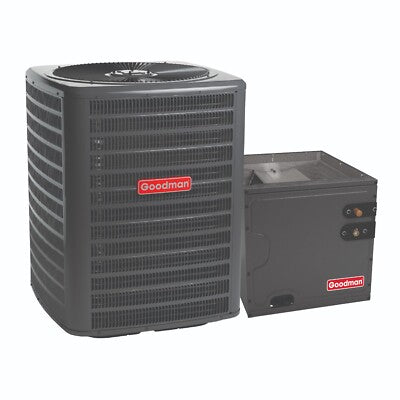

Goodman 5 Ton 13.4 SEER2 R32 Air Conditioner & 21 Vertical Cased Coil
The 5 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil delivers efficient cooling performance with durable construction and user-friendly maintenance.
5 Ton AC Goodman - GLXS3BN6010 Features:
- Energy-Efficient Compressor: Reliable operation with reduced energy use.
- Pre-Charged Convenience: Fully charged for up to 15\' of tubing for faster installation.
- Durable Coil Construction: Includes a factory-installed filter drier and extended-life capacitors for long-lasting operation.
- Factory-Installed Features: Also, Includes filter drier and extended-life capacitors.
- Certified Quality: AHRI Certified and ETL Listed for reliability and safety.
Cabinet Features of the 5 Ton Coil:
- Streamlined Design: The removable grille-style top complies with UL 60335-2-40, while providing easy access for servicing.
- Efficient Airflow: Venturi design enhances airflow velocity.
- Weather-Resistant Build: Architectural Gray powder-coated finish withstands 500-hour salt-spray tests.
- Easy Maintenance: Side and top access for routine service.
5 Ton Coil - CAPTA6030C3 Features:
- All-Aluminum Coil: Optimized for R-32 refrigerant for long-lasting efficiency.
- Compact Vertical Design: 21 depth for easier installation in tight spaces.
- Rust-Resistant Drain Pan: UV-resistant thermoplastic pan with low water retention and secondary drain connections.
- Foil-Faced Insulation: Additionally, Reduces internal cabinet condensation.
- Simplified Maintenance: Single front access panel and easy-to-remove coil rails.
- Certified for Quality: Lastly, AHRI Certified and ETL Listed for safety and performance.
In conclusion, the 5 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil are designed to provide reliable cooling and long-lasting performance. With its innovative features, robust construction, and ease of maintenance, its an excellent solution for efficient cooling needs. Therefore, this system is a valuable investment for those seeking energy-efficient and durable cooling.
AC Model Number
GLXS3BN6010
SEER
13.4
Tons
5
BTU
60,000
Volts
208/230
Phase
Single
Motor Type
PSC
Min. Circuit Amps
31.1
Max Fuse Size
50
Liquid Connection
3/8
Suction Fitting
1.125
Refrigerant
R-32
Width
35.5
Height
39.5
Depth
35.5
Weight
229
Evaporator Coil Model Number
CAPTA6030C3
Unit Depth
21 in
Unit Height
30 in
Unit Width
21 in
Cased/Uncased
Cased
