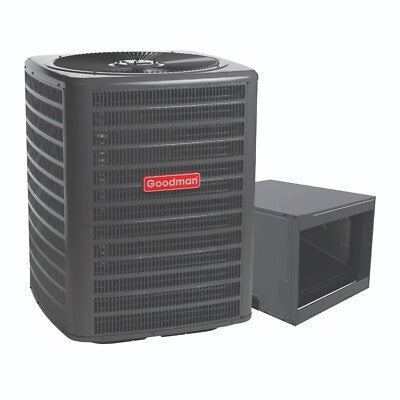

Goodman 2 Ton 13.4 SEER2 AC & 17.5 Horizontal Cased Coil System, R32
The 2 Ton AC Goodman 13.4 SEER2 & 17.5 Horizontal Cased Coil is designed to deliver efficient, long-lasting cooling performance for residential applications. Featuring advanced technology and robust construction, this system offers enhanced energy efficiency, durability, and easy maintenance for reliable year-round comfort.
Goodman 2 Ton AC - GLXS3BN2410 Features:
- Energy-Efficient Compressor: Reduces energy consumption while ensuring optimal performance.
- Pre-Charged for Convenience: Fully charged for up to 15\' of tubing, making installation quicker and easier.
- Durable Coil Design: Copper tube with 5mm aluminum fins for efficient heat exchange.
- Factory-Installed Filter Drier: Helps maintain system longevity and performance.
- Service-Friendly: Sweat connection service valves for easy access to gauge ports.
- Reliable Operation: Includes enclosed contactor, high-pressure switch, and capacitors with extended life.
- Certified Quality: AHRI Certified and ETL Listed for guaranteed performance and safety.
Cabinet Features:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 standards for safety.
- Increased Airflow: Venturi design enhances airflow velocity for improved cooling efficiency.
- Durable Architectural Finish: Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
- Protective Coil Guard: Steel louver coil guard shields key components.
- Easy Access: Top and side maintenance access with a single-panel control interface for added convenience.
2 Ton Coil - CHPTA2426B3 Features:
- Optimized for R-32 Refrigerant: All-aluminum evaporator coil designed specifically for R-32 refrigerant, increasing system efficiency.
- Long-lasting R-32 Sensor: Built-in sensor ensures durability throughout the lifespan of the coil.
- Thermal Expansion Valves: Factory-installed for cooling and heat pump applications.
- Compact Design: 21 depth for easy attic installation with a single front access panel for easy maintenance.
- Durable Construction: Galvanized leather grain-embossed finish and rust-resistant thermoplastic drain pan.
- Advanced Drain Design: DecaBDE-free, low water-retention thermoplastic drain pan with secondary drain connections and UV resistance.
- Certified: AHRI Certified and ETL Listed for high performance and safety.
AC Model Number: GLXS3BN2410
SEER: 13.4
Tons: 2
BTU: 24,000
Volts: 208/230
Phase: Single
Motor Type: PSC
Min. Circuit Amps: 10.9
Max Fuse Size: 15
Liquid Connection: 3/8
Suction Fitting: 3/4
Refrigerant: R-32
Width: 27.5
Height: 29.5
Depth: 27.5
Weight: 114
Evaporator Coil Model Number: CHPTA2426B3
Unit Depth: 21 in
Unit Height: 17.5 in
Unit Width: 26 in
Cased/Uncased: Cased
