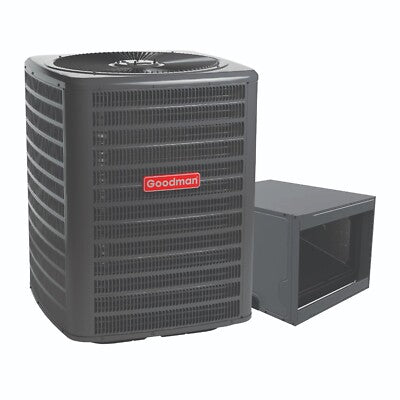

Goodman 1.5 Ton 13.4 SEER2 AC & 17.5 Horizontal Cased Coil System, R32

Features:

• Energy-Efficient Compressor: Ensures optimized performance and energy savings.
• Precharged for 15\' Tubing Length: Simplifies installation.
• 5mm Copper Tube & Enhanced Aluminum Fin Coil: Promotes efficient heat transfer.
• Factory-Installed Filter Drier: Protects against moisture and contaminants.
• Sweat Connection Service Valves with Gauge Ports: Facilitates maintenance.
• High-Pressure Switch: Enhances system reliability.
• Durable Cabinet: Heavy-gauge steel with Architectural Gray powder finish and steel louver coil guard.

Specifications for AC Model GLXS3BN1810:

• SEER: 13.4
• Tons: 1.5
• BTU: 18,000
• Volts: 208/230
• Phase: Single
• Motor Type: PSC
• Min. Circuit Amps: 10.9
• Max Fuse Size: 15
• Liquid Connection: 3/8
• Suction Fitting: 3/4
• Refrigerant: R-32
• Width: 27.5
• Height: 29.5
• Depth: 27.5
• Weight: 114 lbs

Features of 1.5 Ton Coil CHPTA2426B3:

• All-Aluminum Evaporator Coil: Engineered for R-32 refrigerant.
• Factory-Installed Thermal Expansion Valves: Suitable for cooling and heat pump applications.
• Rust-Resistant, UV-Stable Drain Pan: Reduces water retention and resists corrosion.
• Compact Horizontal Design: Fits easily in attic spaces with a 21 depth for accessibility.
• Foil-Faced Insulation: Minimizes condensation and improves efficiency.
• Galvanized Steel Cabinet: Resists rust and provides long-lasting durability.
• AHRI Certified & ETL Listed: Verifies high quality and safety standards.

Specifications for Evaporator Coil Model CHPTA2426B3:

• Unit Depth: 21 in
• Unit Height: 17.5 in
• Unit Width: 26 in
• Cased/Uncased: Cased
