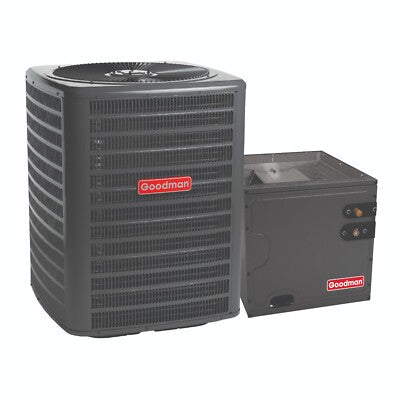

Goodman 3.5 Ton 13.4 SEER2 AC & 24.5 Vertical Cased Coil System, R32
The 3.5 Ton AC Goodman 13.4 SEER2 & 24.5 Vertical Cased Coil delivers efficient, reliable cooling with durable design features.
3.5 Ton AC Goodman - GLXS3BN4210 Features:
- Efficient Performance: Energy-efficient compressor pre-charged for 15\' tubing length.
- Durable Design: Copper tube with enhanced aluminum fin coil and factory-installed filter drier.
- Ease of Maintenance: Accessible service valves, high-pressure switch, and extended-life capacitors.
- Certified Quality: AHRI and ETL listed for reliability.
Cabinet Highlights of the 3.5 Ton Coil Goodman:
- Airflow Optimization: Grille-style removable top and venturi design.
- Durable Finish: Powder-coated Architectural Gray finish with salt-spray resistance.
- Protective Features: Steel louver coil guard and single-panel access for service.
3.5 Ton Coil - CAPTA4230D3 Features:
- Advanced Coils: All-aluminum design optimized for R-32 refrigerant.
- Compact & Practical: 21 depth with foil-faced insulation to minimize condensation.
- Enhanced Drainage: UV-resistant, rust-proof, thermoplastic drain pan.
- Versatility: Factory-installed thermal expansion valves and compatibility with cooling/heat pump systems.
The 3.5 Ton AC Goodman 13.4 SEER2 & 24.5 Vertical Cased Coil is engineered for energy efficiency, longevity, and ease of installation, making it a reliable choice for residential or light commercial applications.
AC Model Number
GLXS3BN4210
SEER
13.4
Tons
3.5
BTU
42,000
Volts
208/230
Phase
Single
Motor Type
PSC
Min. Circuit Amps
19.5
Max Fuse Size
30
Liquid Connection
3/8
Suction Fitting
1.125
Refrigerant
R-32
Width
29
Height
35.75
Depth
29
Weight
136
Evaporator Coil Model Number
CAPTA4230D3
Unit Depth
21 in
Unit Height
30 in
Unit Width
24.5 in
Cased/Uncased
Cased
